SKU: POS28.EU

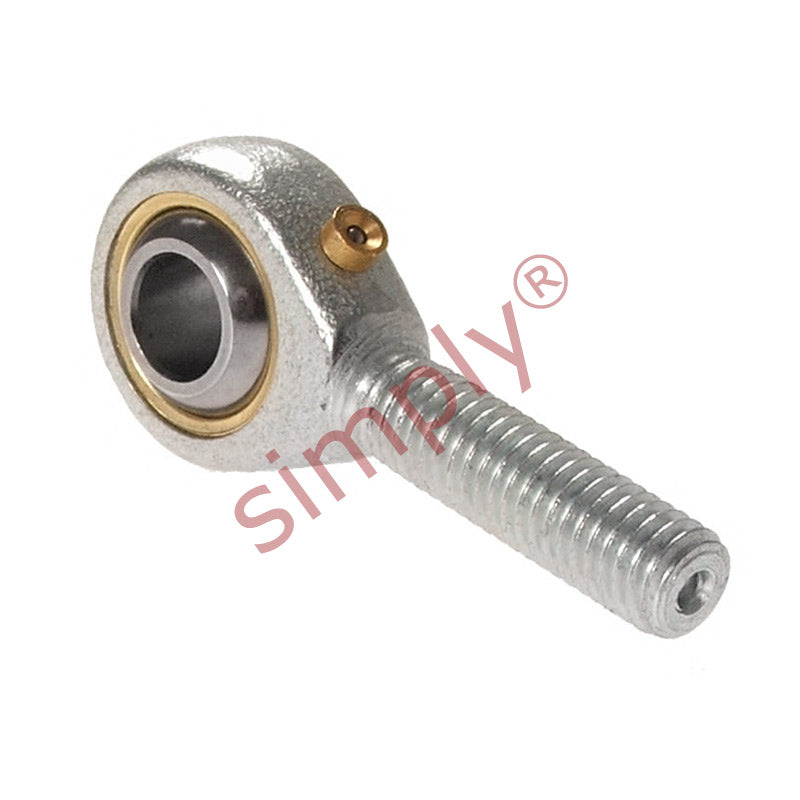

Budget POS28 Right Hand Steel / Bronze Lined Plain Male Rod End 28mm Bore M27x2 Thread
Budget POS28 Right Hand Steel / Bronze Lined Plain Male Rod End 28mm Bore M27x2 Thread
Regular price
€28,95
ex VAT
Regular price
Sale price
€28,95
ex VAT
In stock
Price Break
10+
€21,45
19+
€20,24
29+
€20,00
39+
€19,76
49+
€19,52
74+
€19,28
99+
€18,07
199+
€17,83
249+
€17,59
499+
€17,35
999+
€16,87
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M27x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 28mm
- Material:
- Bronze Lined
Technical
Technical
| d | 28mm |
|---|---|
| B | 35mm |
| r1 | 0.6mm |
| C1 | 25mm |
| d1 max | 32.29mm |
| d2 | 66mm |
| d3 | M27x2 |
| h | 103mm |
| l1 | 62mm |
| l2 | 136mm |
| Ball diameter | 1-7/8 inch |
| Dynamic load Cr | 59.5 kN |
| Static load Cor | 88.7 kN |
| Max angle α | 15 |
| Weight | 0.875 kg |
