SKU: POS28L.EU

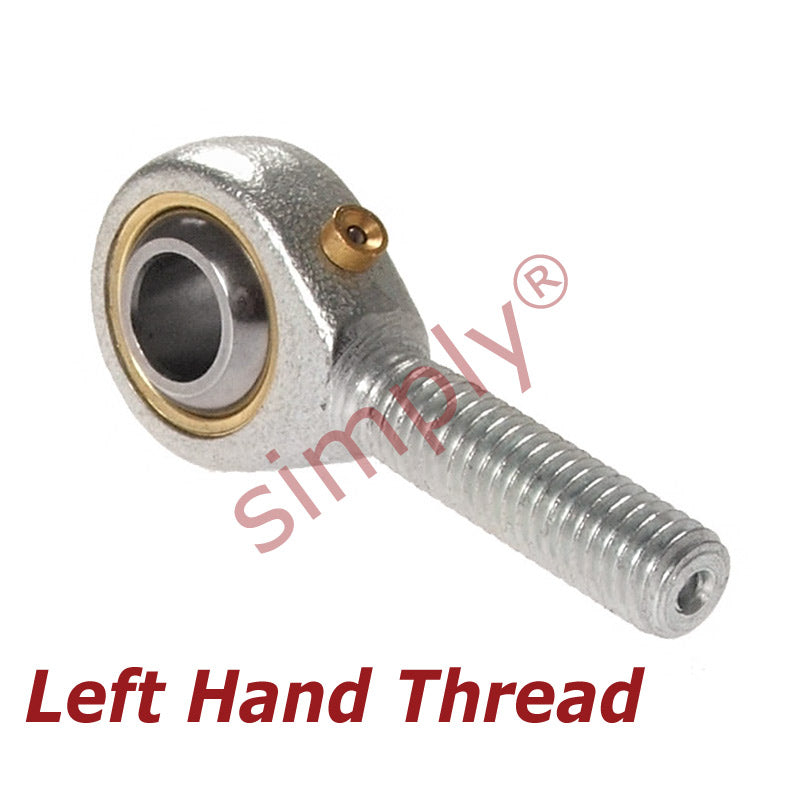

Budget POS28L Left Hand Steel / Bronze Lined Plain Male Rod End 28mm Bore M27x2 Thread
Budget POS28L Left Hand Steel / Bronze Lined Plain Male Rod End 28mm Bore M27x2 Thread
Regular price
€172,95
ex VAT
Regular price
Sale price
€172,95
ex VAT
In stock
Price Break
10+
€131,66
19+
€124,27
29+
€122,79
39+
€121,31
49+
€119,83
74+
€118,35
99+
€110,95
199+
€109,47
249+
€107,99
499+
€106,51
999+
€103,55
Description
Description
|
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M27x2
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 28mm
- Material:
- Bronze Lined
Technical
Technical
| d | 28mm |
|---|---|
| B | 35mm |
| r1 | 0.6mm |
| C1 | 25mm |
| d1 max | 32.29mm |
| d2 | 66mm |
| d3 | M27x2 |
| h | 103mm |
| l1 | 62mm |
| l2 | 136mm |
| Ball diameter | 1-7/8 inch |
| Dynamic load Cr | 59.5 kN |
| Static load Cor | 88.7 kN |
| Max angle α | 15 |
| Weight | 0.875 kg |
