SKU: POS30L.EU

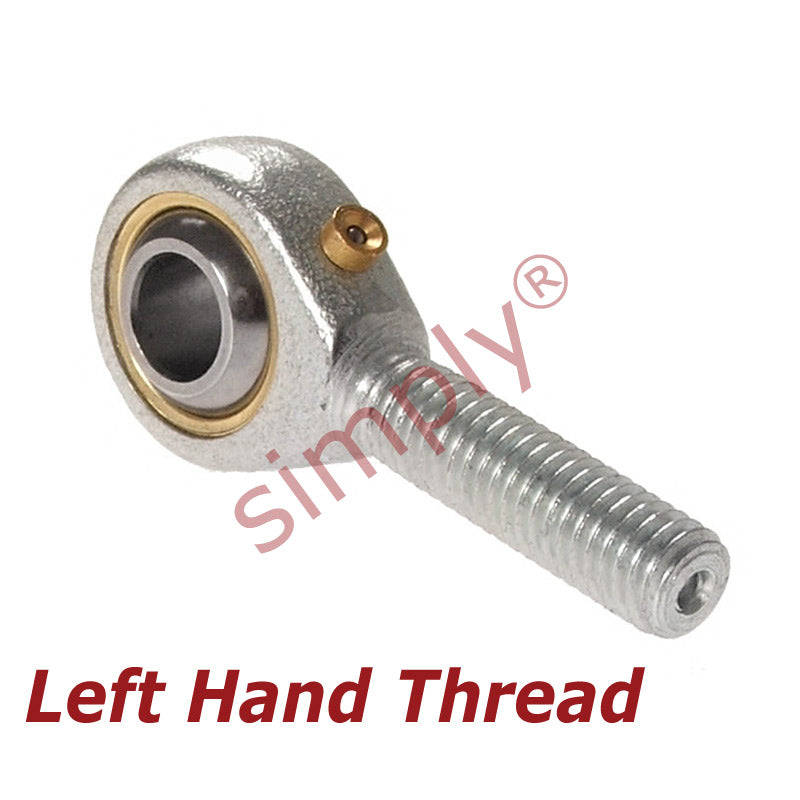

Budget POS30L Left Hand Steel / Bronze Lined Plain Male Rod End 30mm Bore M30x2 Thread
Budget POS30L Left Hand Steel / Bronze Lined Plain Male Rod End 30mm Bore M30x2 Thread
Regular price
€31,95
ex VAT
Regular price
Sale price
€31,95
ex VAT
Equivalent to: SALKAC30M MBL-M30
In stock
Price Break
10+
€23,77
19+
€22,44
29+
€22,17
39+
€21,90
49+
€21,64
74+
€21,37
99+
€20,03
199+
€19,77
249+
€19,50
499+
€19,23
999+
€18,70
Description
Description
|
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: SALKAC30M MBL-M30
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M30x2
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 30mm
- Material:
- Bronze Lined
Technical
Technical
| d | 30mm |
|---|---|
| B | 37mm |
| r1 | 0.6mm |
| C1 | 25mm |
| d1 max | 34.8mm |
| d2 | 70mm |
| d3 | M30x2 |
| h | 110mm |
| l1 | 66mm |
| l2 | 145mm |
| Ball diameter | 2 inch |
| Dynamic load Cr | 63.5 kN |
| Static load Cor | 94 kN |
| Max angle α | 17 |
| Weight | 1.07 kg |
