SKU: POS5L.EC

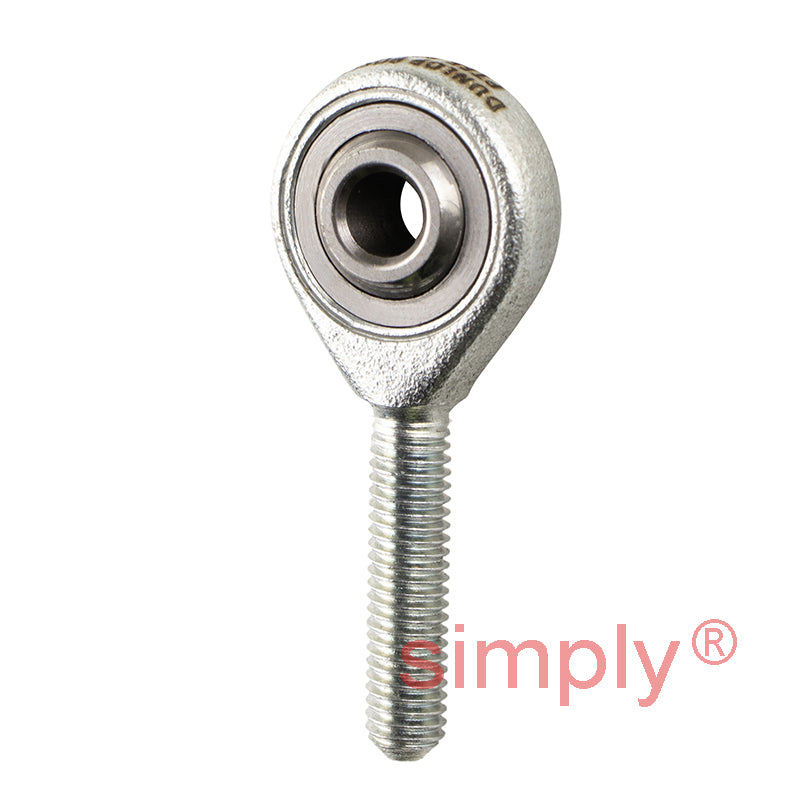

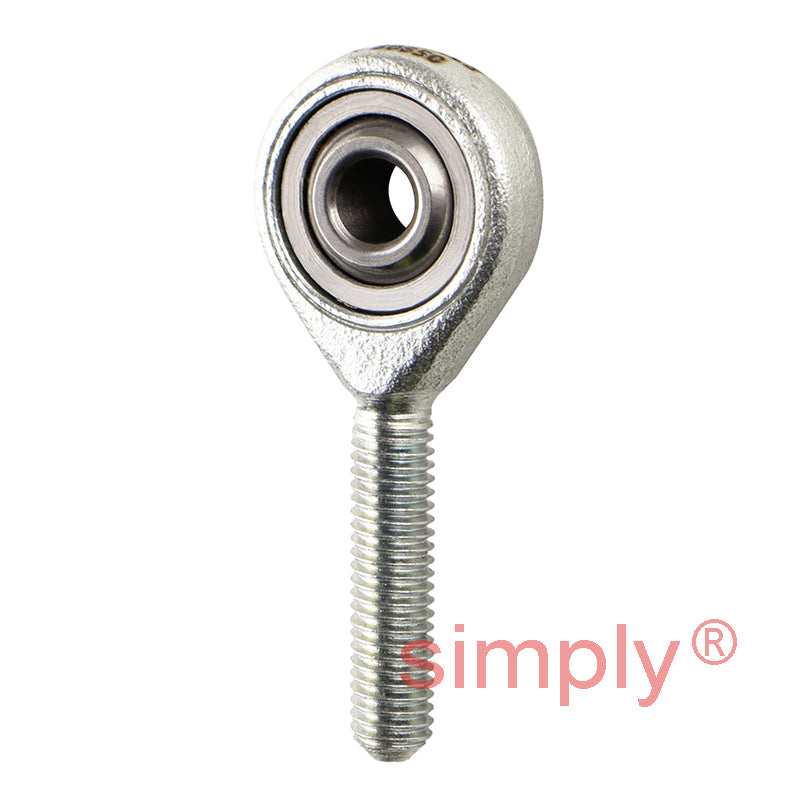

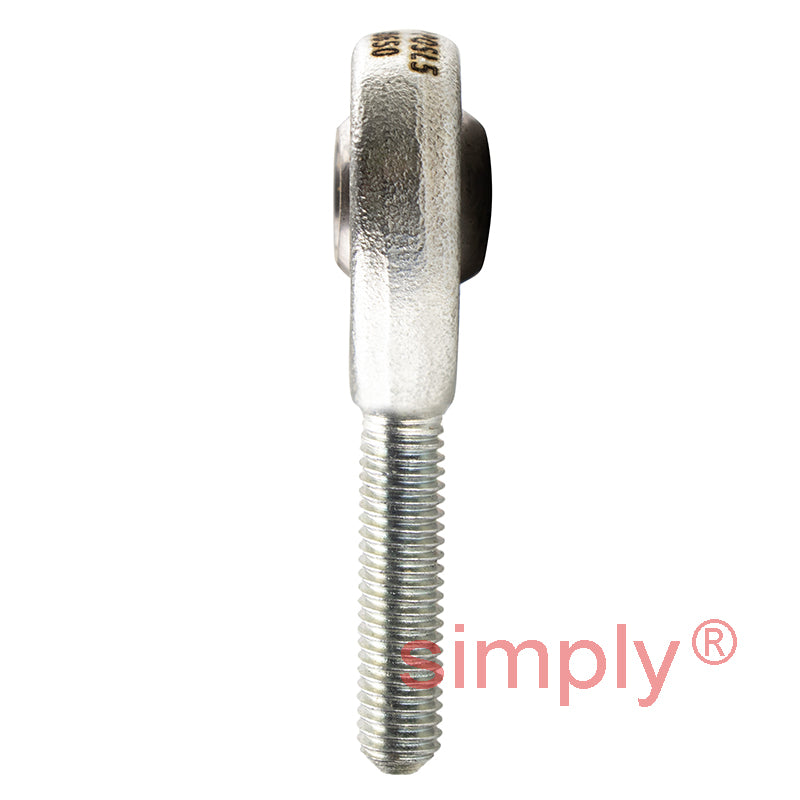

Budget POS5L Left Hand Steel / PTFE Lined Plain Male Rod End 5mm Bore M5x0.8 Thread
Budget POS5L Left Hand Steel / PTFE Lined Plain Male Rod End 5mm Bore M5x0.8 Thread
Regular price
€14,95
ex VAT
Regular price
Sale price
€14,95
ex VAT
In stock
Price Break
10+
€11,21
19+
€10,58
29+
€10,45
39+
€10,33
49+
€10,20
74+
€10,08
99+
€9,45
199+
€9,32
249+
€9,19
499+
€9,07
999+
€8,82
Description
Description
|
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M5x0.8
- Thread Direction:
- Left Hand
- Material:
- PTFE Lined
Technical
Technical
| d | 5mm |
|---|---|
| B | 8mm |
| r1 | 0.3mm |
| C1 | 6mm |
| d1 max | 7.7mm |
| d2 | 16mm |
| d3 | M5x0.8 |
| h | 33mm |
| l1 | 20mm |
| l2 | 41mm |
| Ball diameter | 7/16 inch |
| Dynamic load Cr | 3.3 kN |
| Static load Cor | 3.4 kN |
| Max angle α | 13 |
| Weight | 0.0125 kg |
