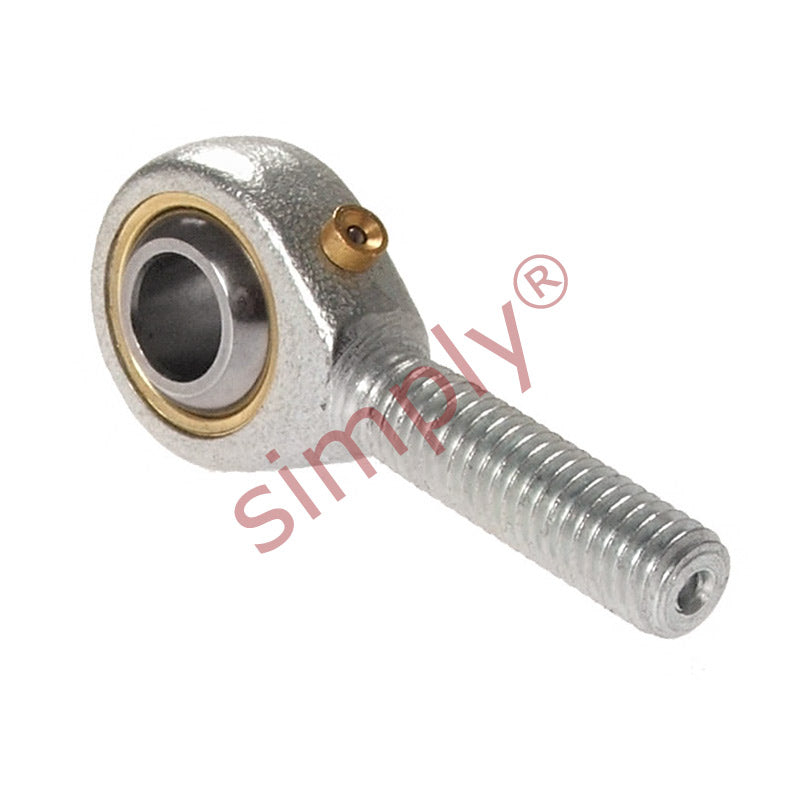

Budget POSB8 Right Hand Steel / Bronze Lined Plain Male Rod End 1/2 inch Bore 0.5000-20UNF Thread

Name: Budget POSB8 Right Hand Steel / Bronze Lined Plain Male Rod End 1/2 inch Bore 0.5000-20UNF Thread
Brand: Gen
SKU: POSB8
Price: 14.95 EUR
Availability: InStock

€14,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €10,76

19+ €10,16

29+ €10,04

39+ €9,92

49+ €9,79

74+ €9,67

99+ €9,07

199+ €8,95

249+ €8,83

499+ €8,71

999+ €8,46

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: 0.5000-20UNF
Thread Direction:: Right Hand
Inside Diameter:: 12.7mm = 0.5 (1/2) inch
Material:: Bronze Lined

Technical

Bore	1/2inch
Head Diameter	1.312 inch
Height	3.094 inch
Height to Bore Centre	2.438 inch
Thread Length	1.500 inch
Thread Size	0.5000-20UNF
Dynamic Load	14800N
Static Load	36300N
