SKU: PSM101410A51-SKF

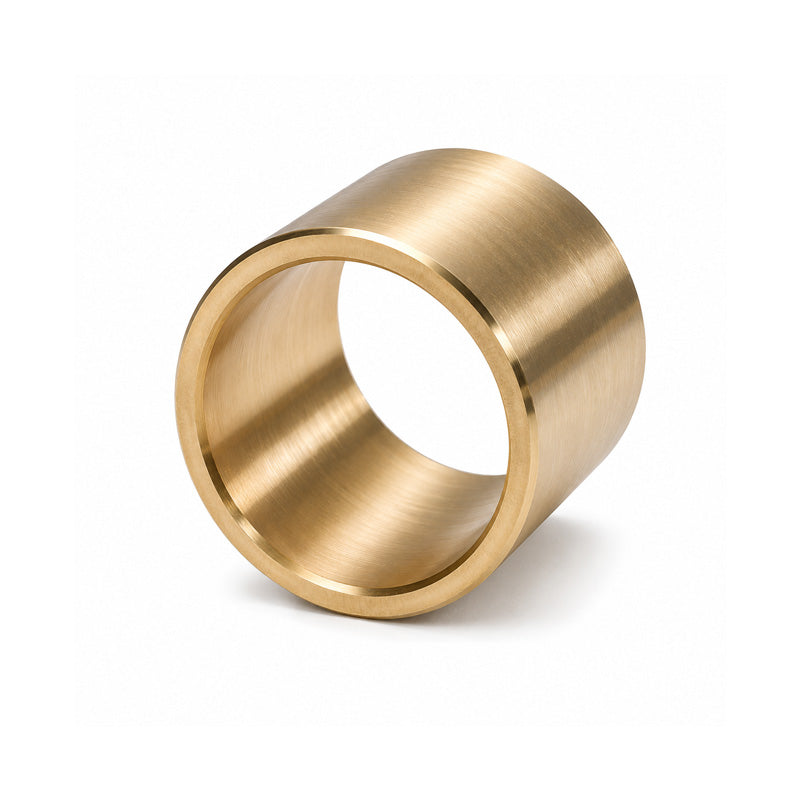

SKF PSM101410A51 Imperial Plain Sintered Bronze Bush 0.394x0.551x0.394 inch
SKF PSM101410A51 Imperial Plain Sintered Bronze Bush 0.394x0.551x0.394 inch
Regular price
€4,95
ex VAT
Regular price
Sale price
€4,95
ex VAT
In stock
Price Break
9+
€3,30
19+
€3,11
29+
€3,08
39+
€3,04
49+
€3,00
69+
€2,97
99+
€2,78
199+
€2,74
249+
€2,71
499+
€2,67
999+
€2,60
Share this product
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 10mm = 0.394 inch
- Outside Diameter:
- 14mm = 0.551 inch
- Length:
- 10mm = 0.394 inch
Technical
Technical
| d | 0.394 inch |
|---|---|
| D | 0.551 inch |
| B | 0.394 inch |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 1450.377 psi |
| Specific Static Load Factor ( K0 ) | 2900.755 psi |
| Permissable Sliding Velocity ( v ) | min. 49.213 ft/min |
| Permissable Sliding Velocity ( v ) | max. 984.252 ft/min |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Imperial Weight | 0.009 lbs |
