SKU: PSM182418A51-SKF

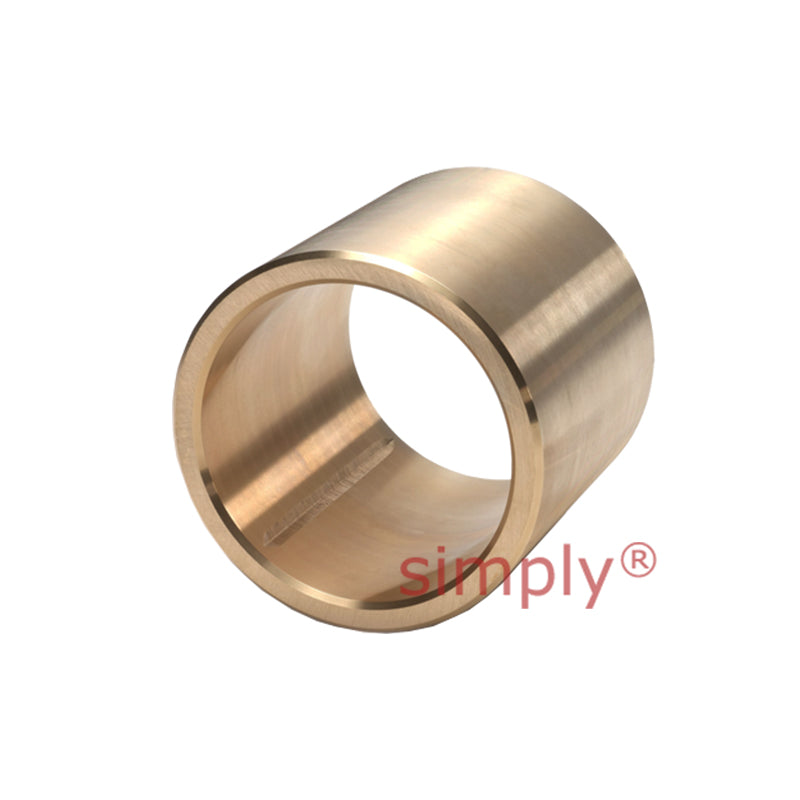

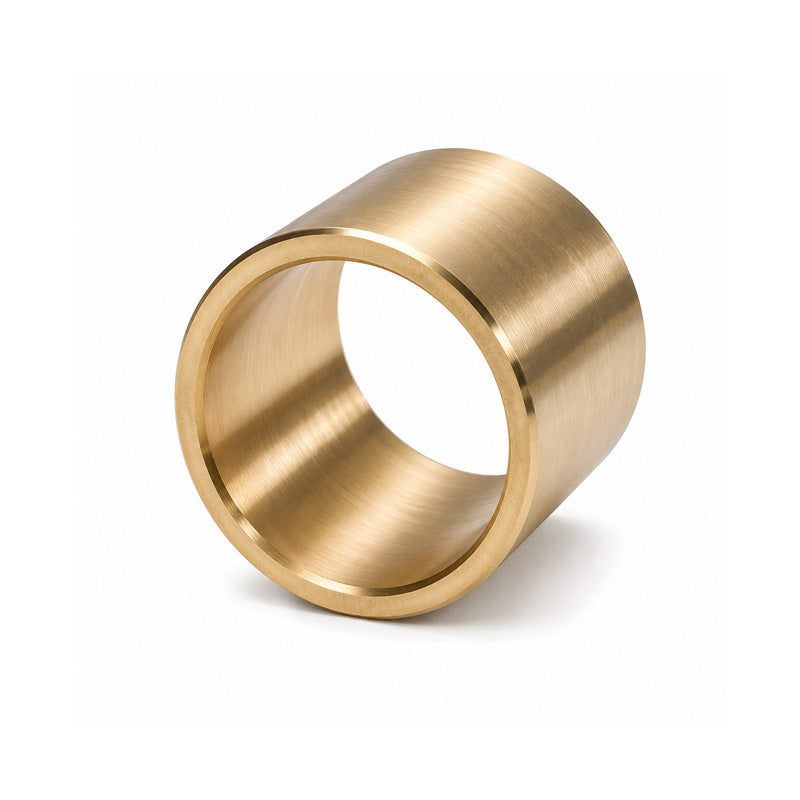

SKF PSM182418A51 Imperial Plain Sintered Bronze Bush 0.709x0.945x0.709 inch
SKF PSM182418A51 Imperial Plain Sintered Bronze Bush 0.709x0.945x0.709 inch
Regular price
€9,95
ex VAT
Regular price
Sale price
€9,95
ex VAT
In stock
Price Break
9+
€7,27
19+
€6,86
29+
€6,78
39+
€6,70
49+
€6,62
69+
€6,54
99+
€6,13
199+
€6,05
249+
€5,96
499+
€5,88
999+
€5,72
Share this product
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 18mm = 0.709 inch
- Outside Diameter:
- 24mm = 0.945 inch
- Length:
- 18mm = 0.709 inch
Technical
Technical
| d | 0.709 inch |
|---|---|
| D | 0.945 inch |
| B | 0.709 inch |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 1450.377 psi |
| Specific Static Load Factor ( K0 ) | 2900.755 psi |
| Permissable Sliding Velocity ( v ) | min. 49.213 ft/min |
| Permissable Sliding Velocity ( v ) | max. 984.252 ft/min |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Imperial Weight | 0.051 lbs |
