SKU: PSM303840A51-SKF

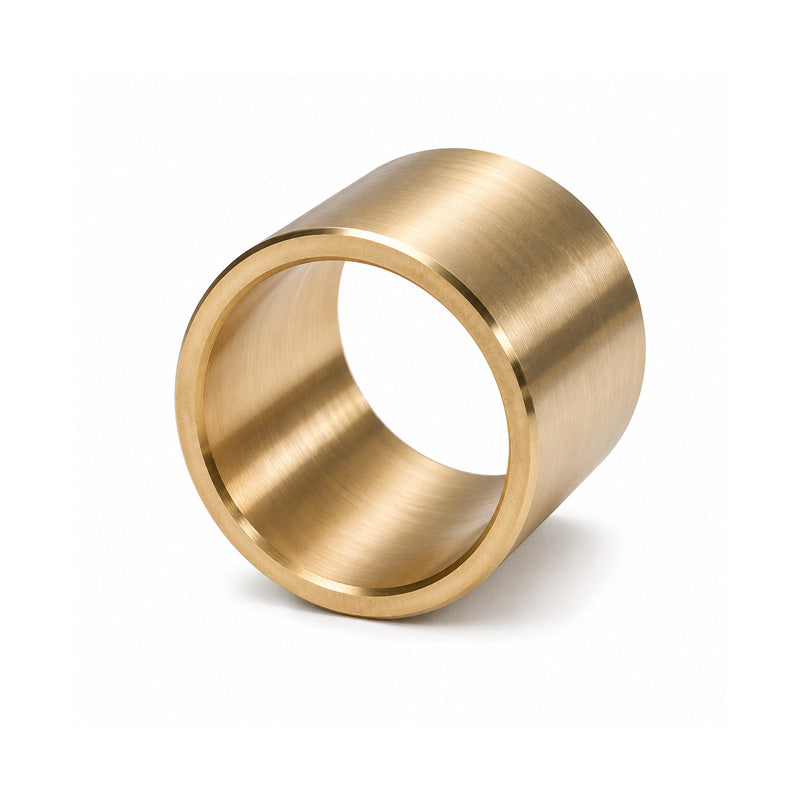

SKF PSM303840A51 Imperial Plain Sintered Bronze Bush 1.181x1.496x1.575 inch
SKF PSM303840A51 Imperial Plain Sintered Bronze Bush 1.181x1.496x1.575 inch
Regular price
€28,95
ex VAT
Regular price
Sale price
€28,95
ex VAT
In stock
Price Break
9+
€21,82
19+
€20,60
29+
€20,35
39+
€20,11
49+
€19,86
69+
€19,62
99+
€18,39
199+
€18,15
249+
€17,90
499+
€17,65
999+
€17,16
Share this product
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm = 1.181 inch
- Outside Diameter:
- 38mm = 1.496 inch
- Length:
- 40mm = 1.575 inch
Technical
Technical
| d | 1.181 inch |
|---|---|
| D | 1.496 inch |
| B | 1.575 inch |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 1450.377 psi |
| Specific Static Load Factor ( K0 ) | 2900.755 psi |
| Permissable Sliding Velocity ( v ) | min. 49.213 ft/min |
| Permissable Sliding Velocity ( v ) | max. 984.252 ft/min |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Imperial Weight | 0.104 lbs |
