SKU: PSMF030604A51-EU

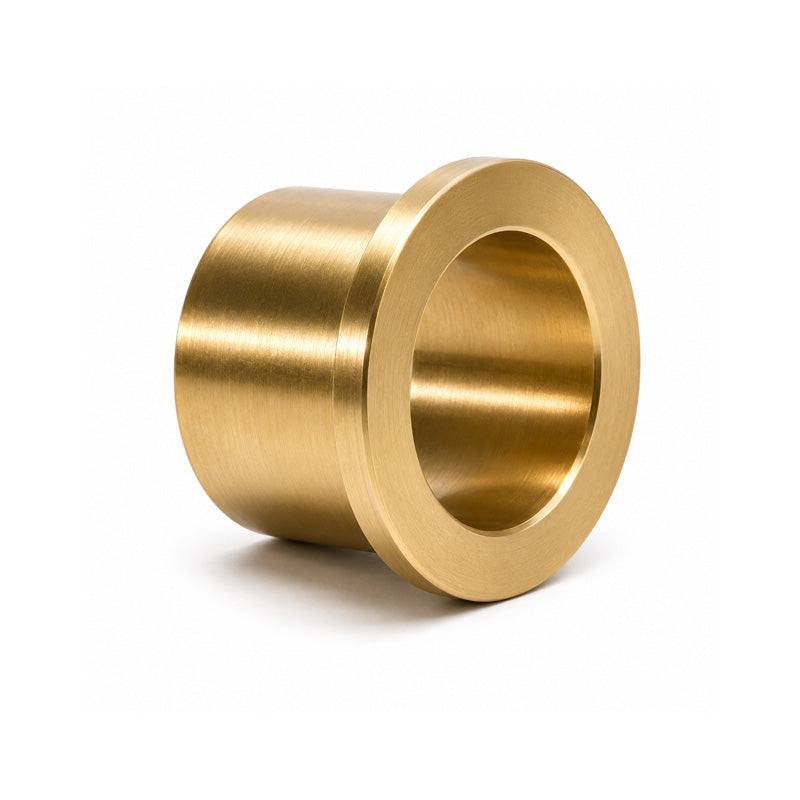

PSMF030604A51 Premier Budget Metric Flanged Sintered Bronze Bush 3x6x4mm
Equivalent to: SBK 003/006 X 004
In stock
Price Break
Description
Premier Budget PSM/PSMF Bronze Bushing: Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. We offer a full range of both plain and flanged cylindrical bushings. Sintered Bronze bushings are most suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 3mm
- Outside Diameter:
- 6mm
- Length:
- 4mm
Technical
| d | 3mm |
|---|---|
| D | 6mm |
| B | 4mm |
| D1 | 9mm |
| B1 | 1.5mm |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 10 N/mm 2 |
| Specific Static Load Factor ( K0 ) | 20 N/mm 2 |
| Permissable Sliding Velocity ( v ) | min. 0.25 m/s |
| Permissable Sliding Velocity ( v ) | max. 5 m/s |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Weight | 0.001kg |
