SKU: PV150100_A

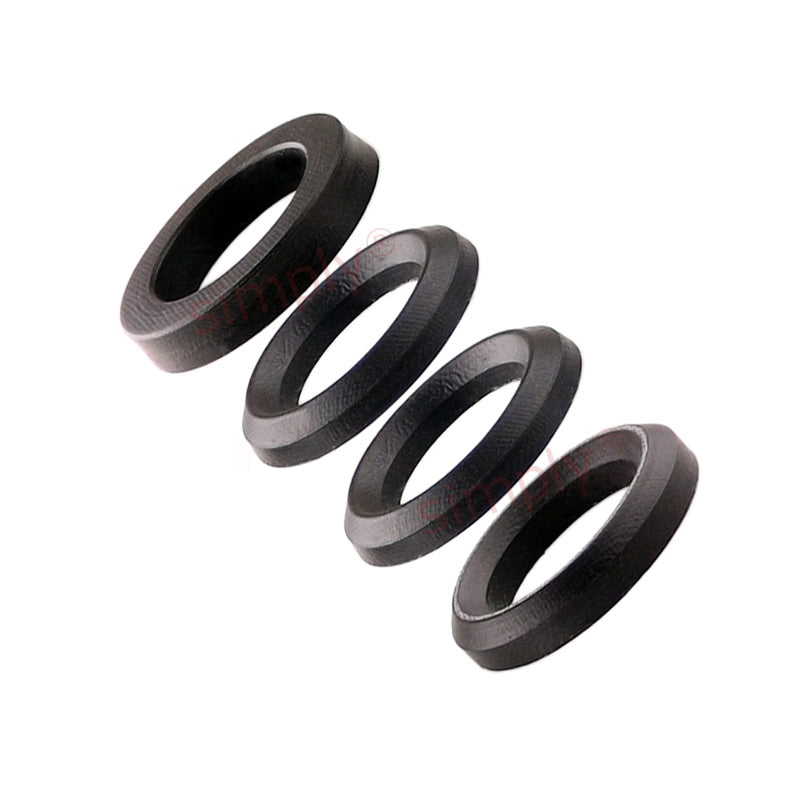

Budget PV150100A Imperial Nitrile PV Type Single Acting Rod Seal 1x1.5x0.75 inch
Budget PV150100A Imperial Nitrile PV Type Single Acting Rod Seal 1x1.5x0.75 inch
Regular price
€52,25
ex VAT
Regular price
Sale price
€52,25
ex VAT
In stock
Price Break
5+
€51,73
10+
€49,64
20+
€48,59
50+
€47,03
100+
€45,98
500+
€43,37
1000+
€36,58
Couldn't load pickup availability
Description
Description

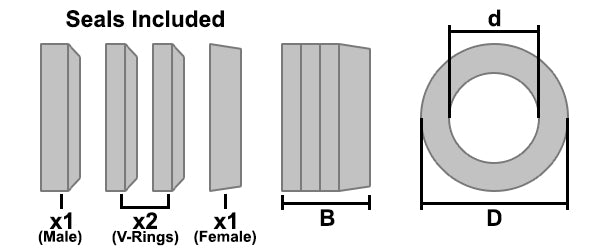

PV Type Single Acting Rod Seals: These rod/piston PV seals are suitable for medium to heavy duty applications. This assembly of seals consists of x1 male seal, x1 female seal and x2 v-rings which are all made from NBR Nitrile. The assembled height can be adjustable by removing the appropriate amount of v-seals that suits your application. The temperature range for this product is from -30 deg C - +100 deg C.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Inside Diameter (d) | 1 inch |
|---|---|
| Outside Diameter (D) | 1.5 inch |
| Width (B) | 0.75 inch |
| Weight | 0.015 kg |
