SKU: RA014-NPP-INA

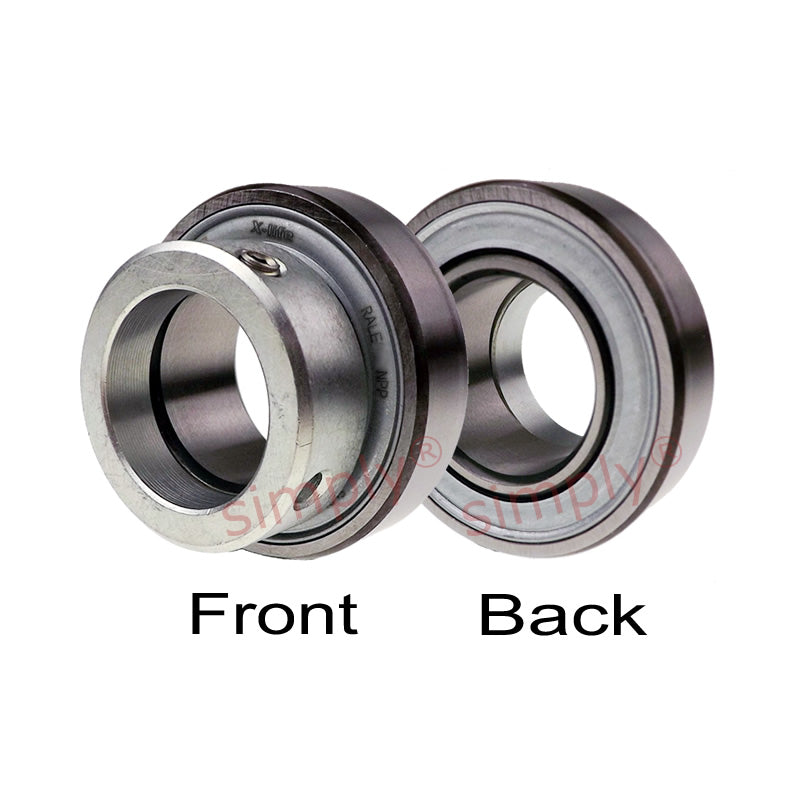

INA RA014NPP Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 22.23x52x31mm
INA RA014NPP Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 22.23x52x31mm
Regular price
€26,95
ex VAT
Regular price
Sale price
€26,95
ex VAT
In stock
Price Break
3+
€20,25
5+
€19,11
10+
€18,88
15+
€18,66
20+
€18,43
30+
€18,20
40+
€17,06
50+
€16,84
60+
€16,61
75+
€16,38
100+
€15,93
Description
Description
|
INA RA..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 52mm
- Width:
- 31mm
Technical
Technical
| d | 22.23mm |
|---|---|
| d | 7/8 inch |
| D | 52mm |
| B1 | 31mm |
| B | 21.4mm |
| C | 15mm |
| d2 | 30.5mm |
| d3 max | 37.5mm |
| S | 7.5mm |
| W | 1/8 inch |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Weight | 0.19 kg |
