SKU: RABRB35/80-FA106-INA

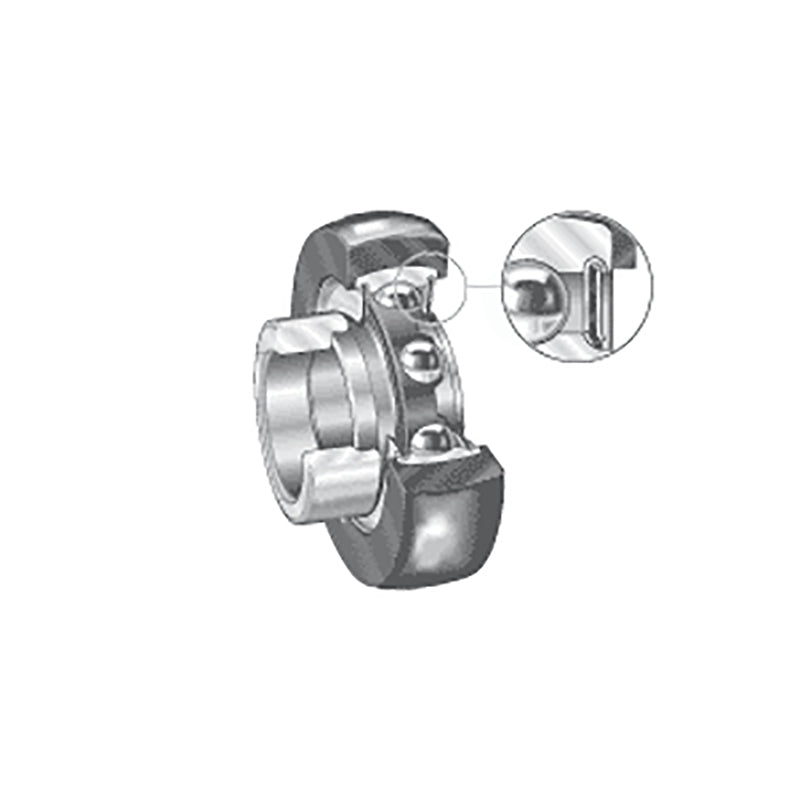

INA RABRB35/80XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 35x80.2x41.4mm
INA RABRB35/80XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 35x80.2x41.4mm
Regular price
€57,95
ex VAT
Regular price
Sale price
€57,95
ex VAT
In stock
Price Break
3+
€43,73
5+
€41,28
10+
€40,79
15+
€40,29
20+
€39,80
30+
€39,31
40+
€36,86
50+
€36,36
60+
€35,87
75+
€35,38
100+
€34,40
Description
Description
|
INA RABRA and RABRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80.2mm
- Width:
- 41.4mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 80.2mm |
| B2 | 41.4mm |
| B1 | 39mm |
| C | 24mm |
| D2 | 62mm |
| d3 max | 51mm |
| S1 | 29.4mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 2700 N |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Designation of rubber interliner | RABR72/80 |
| Designation of bearing | RAE35-NPP-B-FA106 |
| Weight | 0.57 kg |
