SKU: RAE30-NPP-FA106-INA

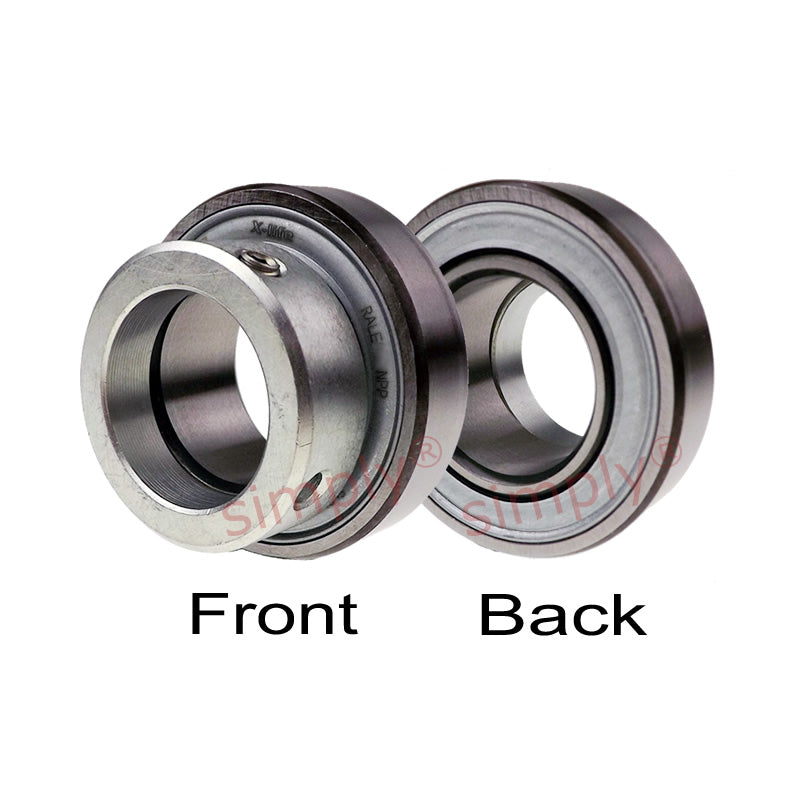

INA RAE30XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 30x62x35.8mm
INA RAE30XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 30x62x35.8mm
Regular price
€35,95
ex VAT
Regular price
Sale price
€35,95
ex VAT
In stock
Price Break
3+
€26,80
5+
€25,29
10+
€24,99
15+
€24,69
20+
€24,39
30+
€24,09
40+
€22,58
50+
€22,28
60+
€21,98
75+
€21,68
100+
€21,08
Description
Description
|
INA RAE..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 35.8mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B1 | 35.8mm |
| B | 23.8mm |
| C | 18mm |
| d2 | 37.4mm |
| d3 max | 44mm |
| S | 9mm |
| W | 4mm |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Weight | 0.33 kg |
