SKU: RAE35-NPP-FA106-INA

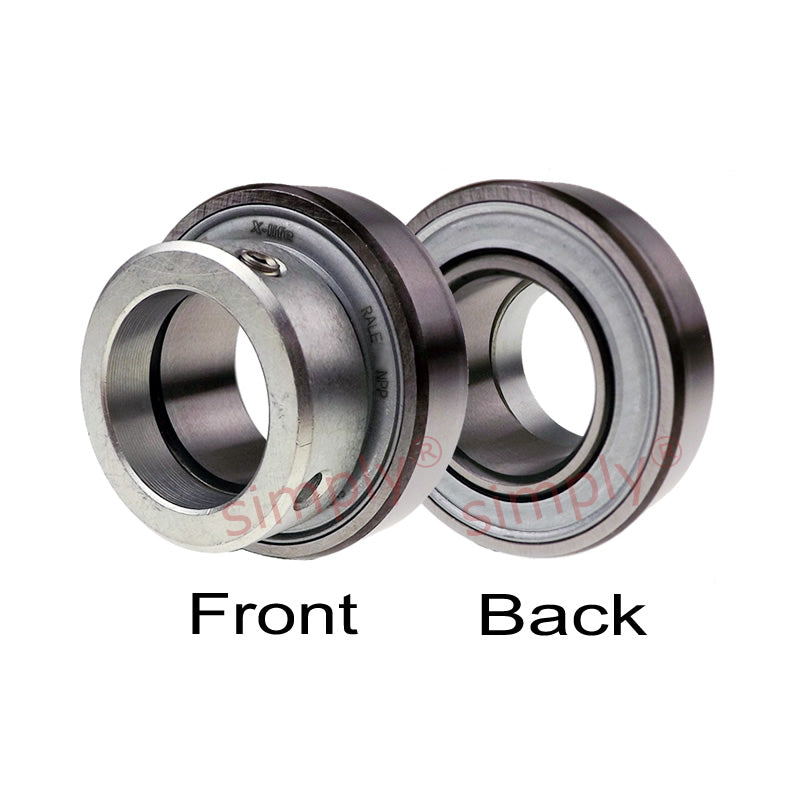

INA RAE35XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 35x72x39mm
INA RAE35XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 35x72x39mm
Regular price
€42,95
ex VAT
Regular price
Sale price
€42,95
ex VAT
In stock
Price Break
3+
€32,70
5+
€30,86
10+
€30,49
15+
€30,13
20+
€29,76
30+
€29,39
40+
€27,56
50+
€27,19
60+
€26,82
75+
€26,45
100+
€25,72
Description
Description
|
INA RAE..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 39mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B1 | 39mm |
| B | 25.4mm |
| C | 19mm |
| d2 | 44.6mm |
| d3 max | 51mm |
| S | 9.5mm |
| W | 5mm |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Weight | 0.49 kg |
