SKU: RAE40-NPP-NR-INA

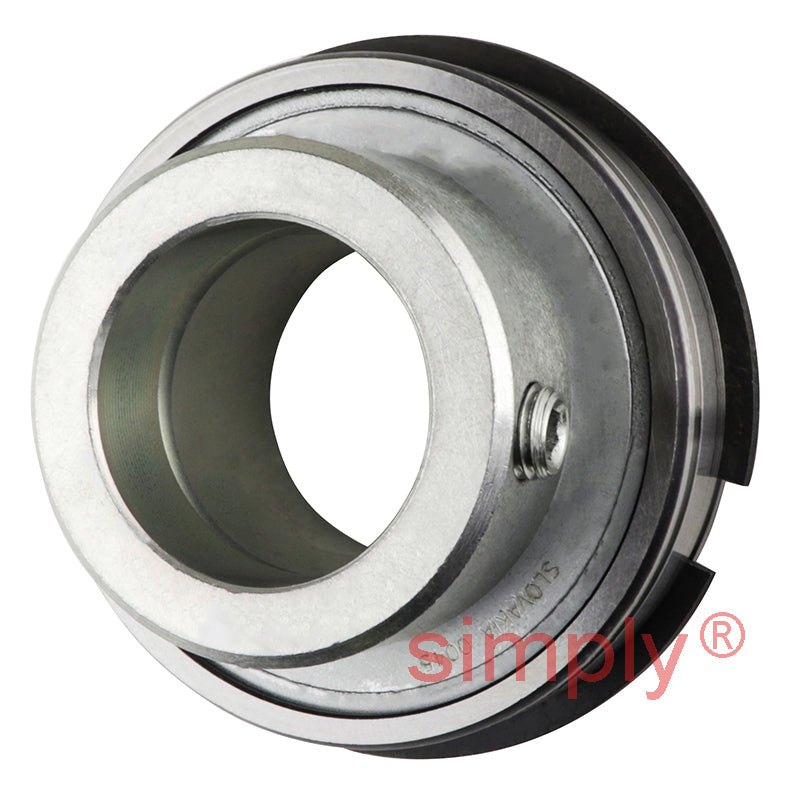

INA RAE40XLNPPNR Metric Parallel Outer Bearing Insert with P Seals and Slots in Outer Ring 40x80x43.8mm
INA RAE40XLNPPNR Metric Parallel Outer Bearing Insert with P Seals and Slots in Outer Ring 40x80x43.8mm
Regular price
€41,95
ex VAT
Regular price
Sale price
€41,95
ex VAT
In stock
Price Break
3+
€31,65
5+
€29,87
10+
€29,51
15+
€29,16
20+
€28,80
30+
€28,45
40+
€26,67
50+
€26,31
60+
€25,96
75+
€25,60
100+
€24,89
Description
Description
|
INA RAE..-NPP-NR Series Inserts: Bearing insert with parallel outer race, P seals, eccentric collar and slots in the outer ring. The bearing is supplied with one snap ring to DIN 5 417 already fitted. These ball bearings are greased and cannot be re-lubricated. Operating temperature range: -20 deg C to +120 deg C. Benefits: Accommodates snap rings. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 43.8mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B1 | 43.8mm |
| A | 4.98mm |
| Tolerance | -0.3 |
| a | 1.7mm |
| B | 30.2mm |
| C | 21mm |
| D2 | 86.6mm |
| d2 | 49.4mm |
| d3 max | 58mm |
| S | 11mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.64 kg |
