SKU: RALE20-NPP-B-INA

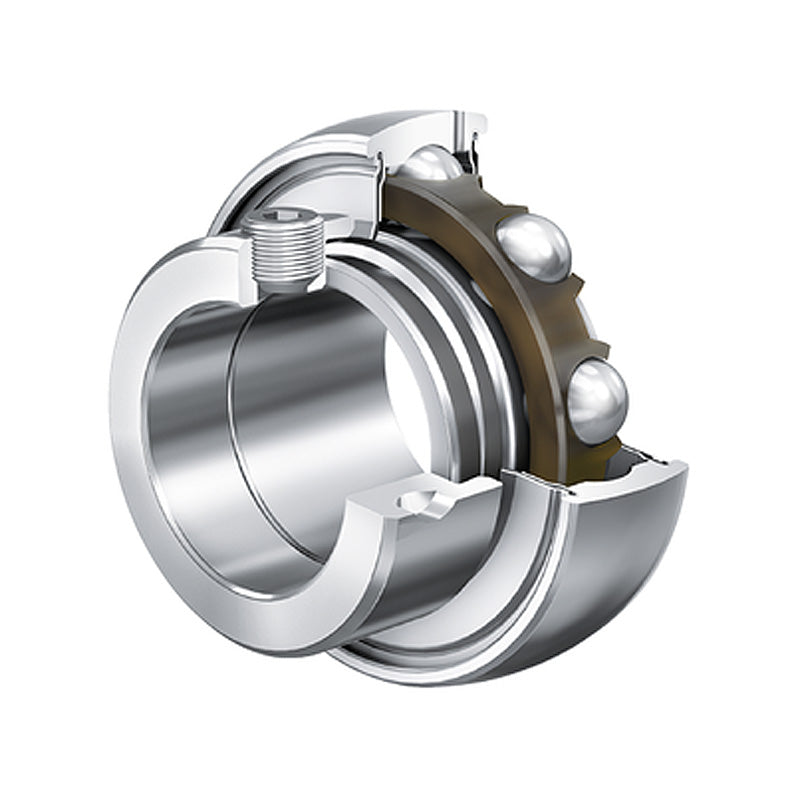

INA RALE20XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 20x42x24.5mm
INA RALE20XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 20x42x24.5mm
Regular price
€23,95
ex VAT
Regular price
Sale price
€23,95
ex VAT
In stock
Price Break
3+
€17,83
5+
€16,83
10+
€16,62
15+
€16,42
20+
€16,22
30+
€16,02
40+
€15,02
50+
€14,82
60+
€14,62
75+
€14,42
100+
€14,02
Description
Description
|
INA RALE..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 24.5mm
Technical
Technical
| d | 20mm |
|---|---|
| Dsp | 42mm |
| B1 | 24.5mm |
| B | 16.7mm |
| C | 12mm |
| d2 | 25.4mm |
| d3 max | 30mm |
| S | 6mm |
| W | 2.5mm |
| Dynamic load Cr | 9400 N |
| Static load C0r | 5000 N |
| Weight | 0.1 kg |
