SKU: RASEY20-XL-N-INA

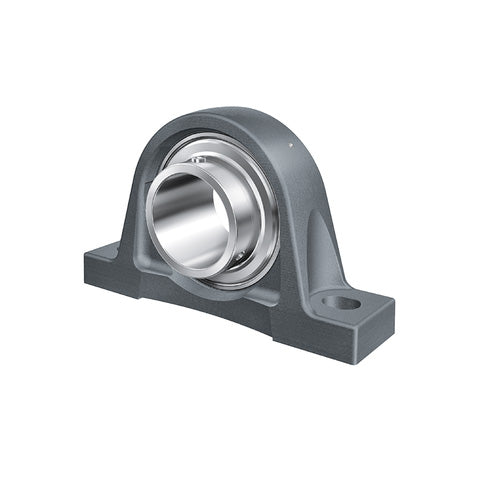

INA RASEY20XLN Cast Iron Plummer Block Housing with Grub Screw Insert 20mm Bore
INA RASEY20XLN Cast Iron Plummer Block Housing with Grub Screw Insert 20mm Bore
Regular price
€35,95
ex VAT
Regular price
Sale price
€35,95
ex VAT
In stock
Price Break
4+
€26,71
9+
€25,21
19+
€24,91
29+
€24,61
39+
€24,31
49+
€24,01
59+
€22,51
69+
€22,21
79+
€21,91
89+
€21,61
99+
€21,01
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: High load carrying capacity, re-lubricatable, grub screw fixing, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Style:
- RASEY
- Bolt Hole Centres:
- 97mm
Technical
Technical
| d | 20mm |
|---|---|
| L | 130mm |
| H2 | 64mm |
| A | 32mm |
| A1 | 19mm |
| B | 31mm |
| H | 33.3mm |
| H1 | 14.5mm |
| J | 97mm |
| N | 11mm |
| N1 | 19mm |
| Q | M6 |
| S1 | 18.3mm |
| Mass | 0.58 kg |
| Basic dynamic load rating Cr | 13600 N |
| Basic static load rating Cor | 6600 N |
| Designation of housing | ASE04 |
| Designation of bearing | GYE20-XL-KRR-B |
| Bearing end cap, closed design (to be ordered separately) | KASK04 |
