SKU: RAX410-MB

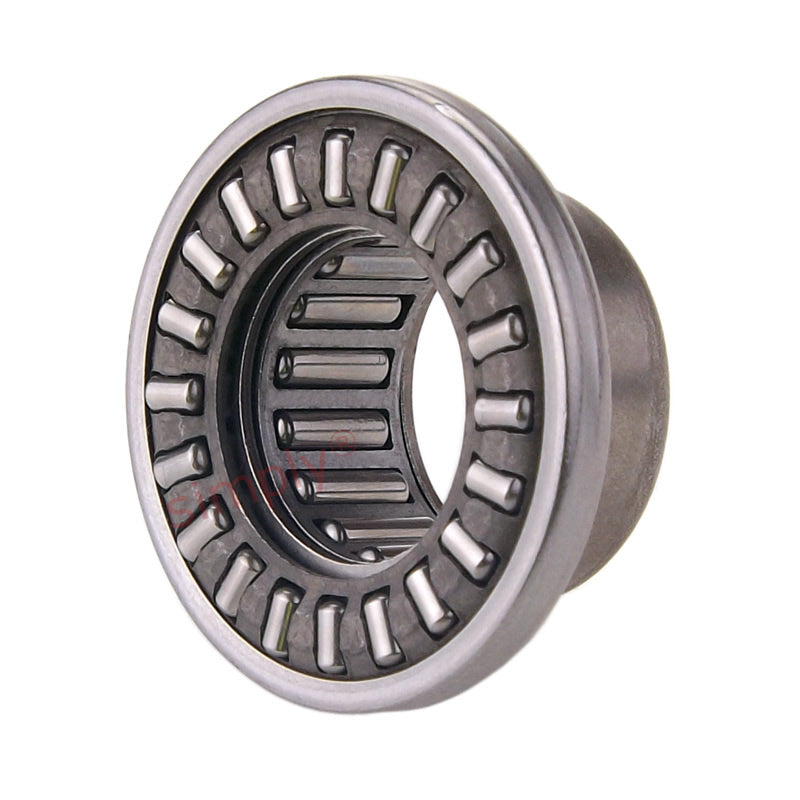

Major Brand RAX 410 Needle Combined Bearing with Needle Thrust Cage 10x19x19mm Allow 2-3 Days
Major Brand RAX 410 Needle Combined Bearing with Needle Thrust Cage 10x19x19mm Allow 2-3 Days
Regular price
€259,95
ex VAT
Regular price
Sale price
€259,95
ex VAT
In stock
Price Break
10+
€197,55
19+
€186,46
29+
€184,24
39+
€182,02
49+
€179,80
74+
€177,58
99+
€166,48
199+
€164,26
249+
€162,04
499+
€159,82
999+
€155,38
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 19mm
Technical
Technical
| Fw | 10mm |
|---|---|
| C | 19mm |
| D | 19mm |
| Da | 22mm |
| Eb | 12mm |
| Ea | 18.6mm |
| C1 | 5mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 5.9 kN |
| Radial static load | 7.16 kN |
| Axial dynamic load | 5 kN |
| Axial static load | 10.9 kN |
| Speed rating | 15500 rpm |
| Inner ring | JR 7x10x16 kN |
| Weight | 0.025 kg |
