SKU: RAX430-MB

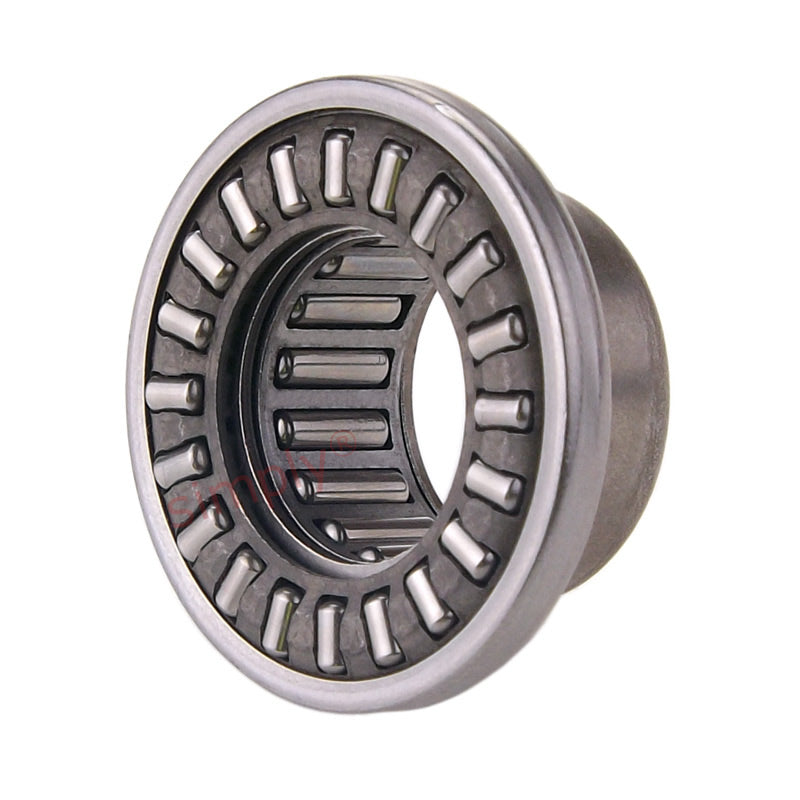

Major Brand RAX 430 Needle Combined Bearing With Needle Thrust Cage 30x42x24mm
Major Brand RAX 430 Needle Combined Bearing With Needle Thrust Cage 30x42x24mm
Regular price
€107,95
ex VAT
Regular price
Sale price
€107,95
ex VAT
In stock
Price Break
10+
€82,00
19+
€77,39
29+
€76,47
39+
€75,55
49+
€74,63
74+
€73,70
99+
€69,10
199+
€68,18
249+
€67,25
499+
€66,33
999+
€64,49
Share this product
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 24mm
- Width:
- 42mm
Technical
Technical
| Fw | 30mm |
|---|---|
| C | 24mm |
| D | 42mm |
| Da | 47mm |
| Eb | 32.7mm |
| Ea | 42.4mm |
| C1 | 6mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 20.2 kN |
| Radial static load | 34.6 kN |
| Axial dynamic load | 14.5 kN |
| Axial static load | 57 kN |
| Speed rating | 6500 rpm |
| Inner ring | JR 25x30x20 kN |
| Weight | 0.111 kg |
