SKU: RAX440-MB

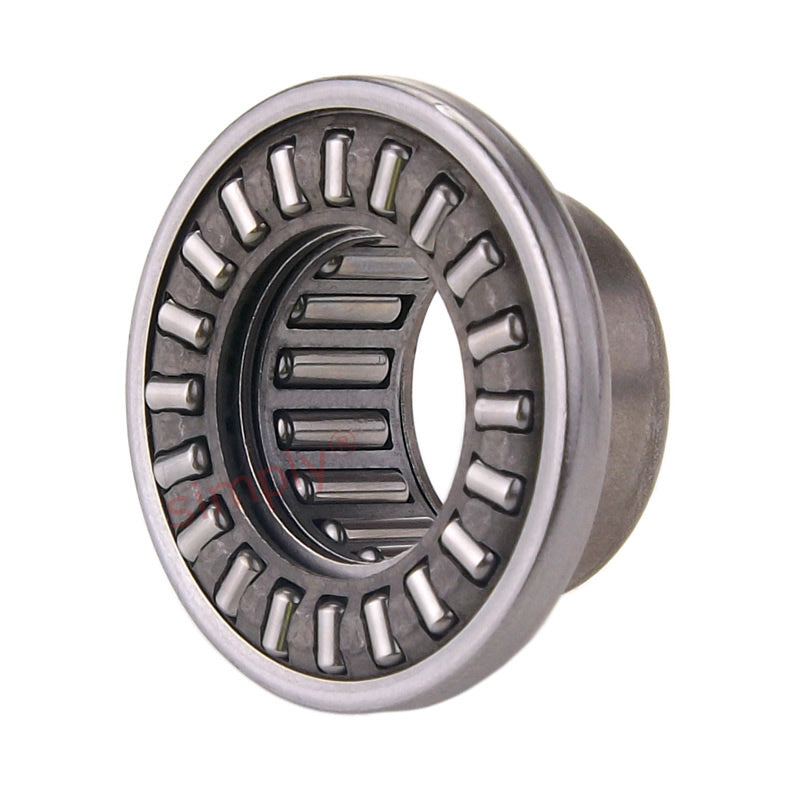

Major Brand RAX 440 Needle Combined Bearing with Needle Thrust Cage 40x52x24mm Allow 2-3 Days
Major Brand RAX 440 Needle Combined Bearing with Needle Thrust Cage 40x52x24mm Allow 2-3 Days
Regular price
€256,95
ex VAT
Regular price
Sale price
€256,95
ex VAT
In stock
Price Break
10+
€195,67
19+
€184,68
29+
€182,48
39+
€180,28
49+
€178,08
74+
€175,88
99+
€164,89
199+
€162,69
249+
€160,49
499+
€158,29
999+
€153,90
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 24mm
- Width:
- 52mm
Technical
Technical
| Fw | 40mm |
|---|---|
| C | 24mm |
| D | 52mm |
| Da | 60mm |
| Eb | 43mm |
| Ea | 54.9mm |
| C1 | 6mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 23.8 kN |
| Radial static load | 47 kN |
| Axial dynamic load | 20.4 kN |
| Axial static load | 96 kN |
| Speed rating | 5000 rpm |
| Inner ring | JR 35x40x20 kN |
| Weight | 0.15 kg |
