SKU: RAX512-MB

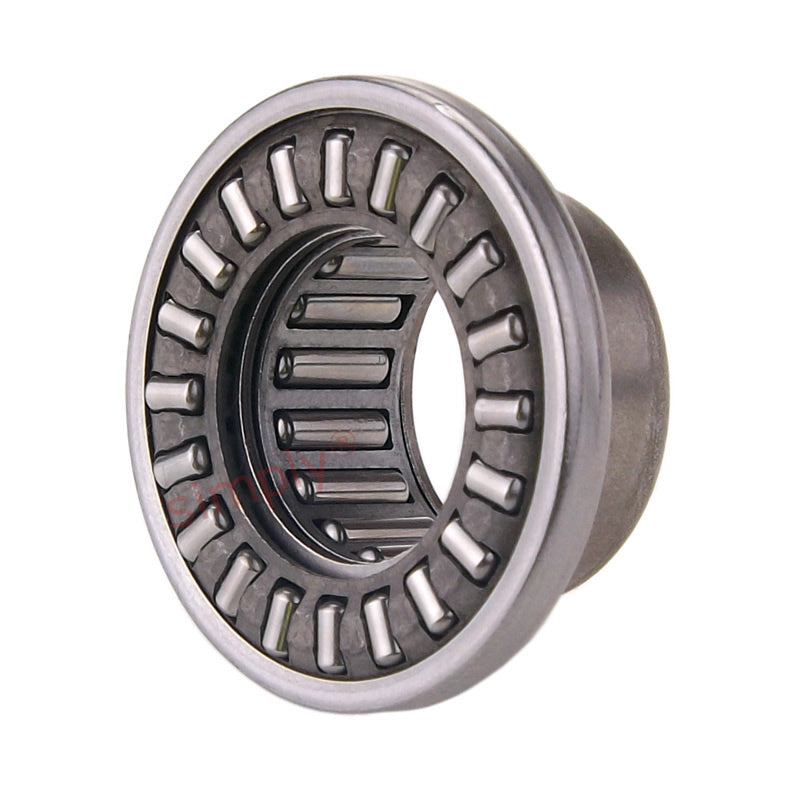

Major Brand RAX 512 Needle Combined Bearing with Needle Thrust Cage 12x21x20mm Allow 2-3 Days
Major Brand RAX 512 Needle Combined Bearing with Needle Thrust Cage 12x21x20mm Allow 2-3 Days
Regular price
€285,95
ex VAT
Regular price
Sale price
€285,95
ex VAT
In stock
Price Break
10+
€217,27
19+
€205,07
29+
€202,63
39+
€200,18
49+
€197,74
74+
€195,30
99+
€183,10
199+
€180,65
249+
€178,21
499+
€175,77
999+
€170,89
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 20mm
- Width:
- 21mm
Technical
Technical
| Fw | 12mm |
|---|---|
| C | 20mm |
| D | 21mm |
| Da | 26mm |
| Eb | 22.9mm |
| Ea | 14.8mm |
| C1 | 6mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 6.78 kN |
| Radial static load | 9.03 kN |
| Axial dynamic load | 12.7 kN |
| Axial static load | 29.5 kN |
| Speed rating | 13000 rpm |
| Inner ring | JR 9x12x16 kN |
| Weight | 0.033 kg |
