SKU: RAX517-MB

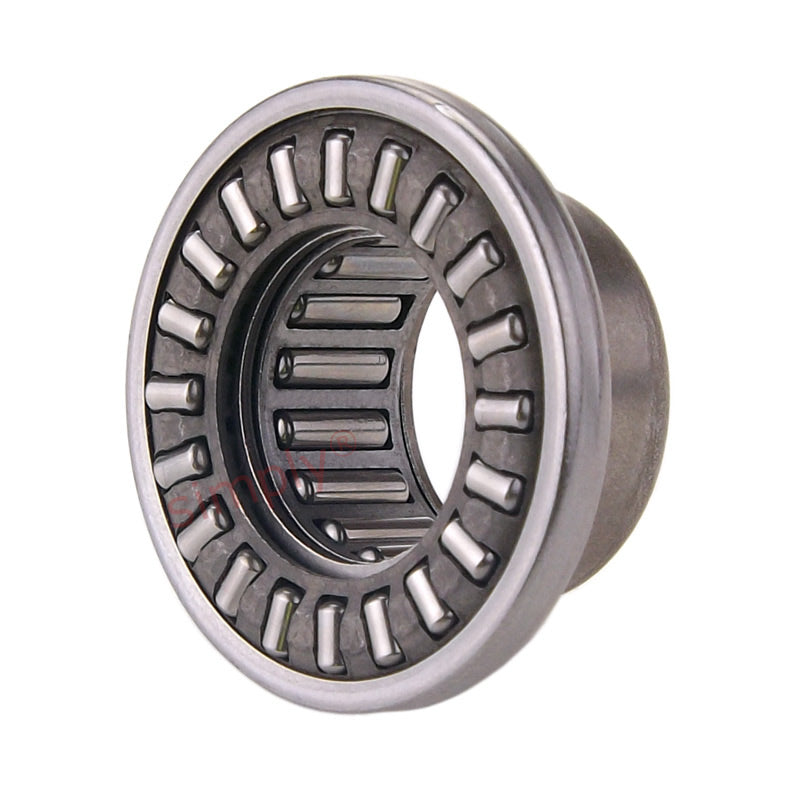

Major Brand RAX 517 Needle Combined Bearing with Needle Thrust Cage 17x26x22mm Allow 2-3 Days
Major Brand RAX 517 Needle Combined Bearing with Needle Thrust Cage 17x26x22mm Allow 2-3 Days
Regular price
€326,95
ex VAT
Regular price
Sale price
€326,95
ex VAT
In stock
Price Break
10+
€248,70
19+
€234,73
29+
€231,94
39+
€229,14
49+
€226,35
74+
€223,55
99+
€209,58
199+
€206,79
249+
€203,99
499+
€201,20
999+
€195,61
Share this product
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 22mm
- Width:
- 26mm
Technical
Technical
| Fw | 17mm |
|---|---|
| C | 22mm |
| D | 26mm |
| Da | 30mm |
| Eb | 18.8mm |
| Ea | 26.9mm |
| C1 | 6mm |
| C2 | 8mm |
| rs min | 0.65mm |
| Radial dynamic load | 11.8 kN |
| Radial static load | 16.3 kN |
| Axial dynamic load | 15 kN |
| Axial static load | 39 kN |
| Speed rating | 10500 rpm |
| Inner ring | JR 14x17x17 kN |
| Weight | 0.044 kg |
