SKU: RAX560-MB

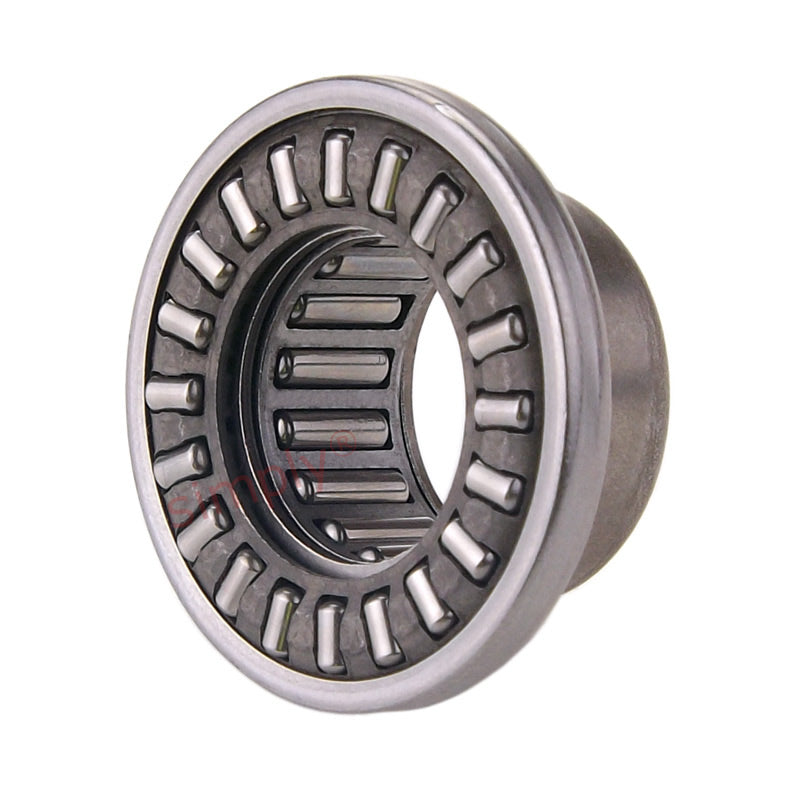

Major Brand RAX 560 Needle Combined Bearing with Needle Thrust Cage 60x72x32mm Allow 2-3 Days
Major Brand RAX 560 Needle Combined Bearing with Needle Thrust Cage 60x72x32mm Allow 2-3 Days
Regular price
€661,95
ex VAT
Regular price
Sale price
€661,95
ex VAT
In stock
Price Break
10+
€503,39
19+
€475,11
29+
€469,45
39+
€463,80
49+
€458,14
74+
€452,49
99+
€424,21
199+
€418,55
249+
€412,89
499+
€407,24
999+
€395,93
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 32mm
- Width:
- 72mm
Technical
Technical
| Fw | 60mm |
|---|---|
| C | 32mm |
| D | 72mm |
| Da | 85.4mm |
| Eb | 63.5mm |
| Ea | 79.5mm |
| C1 | 11mm |
| C2 | 11mm |
| rs min | 1.3mm |
| Radial dynamic load | 31.9 kN |
| Radial static load | 78.1 kN |
| Axial dynamic load | 71 kN |
| Axial static load | 255 kN |
| Speed rating | 3500 rpm |
| Inner ring | JR 55x60x25 kN |
| Weight | 0.327 kg |
