SKU: RAX570-MB

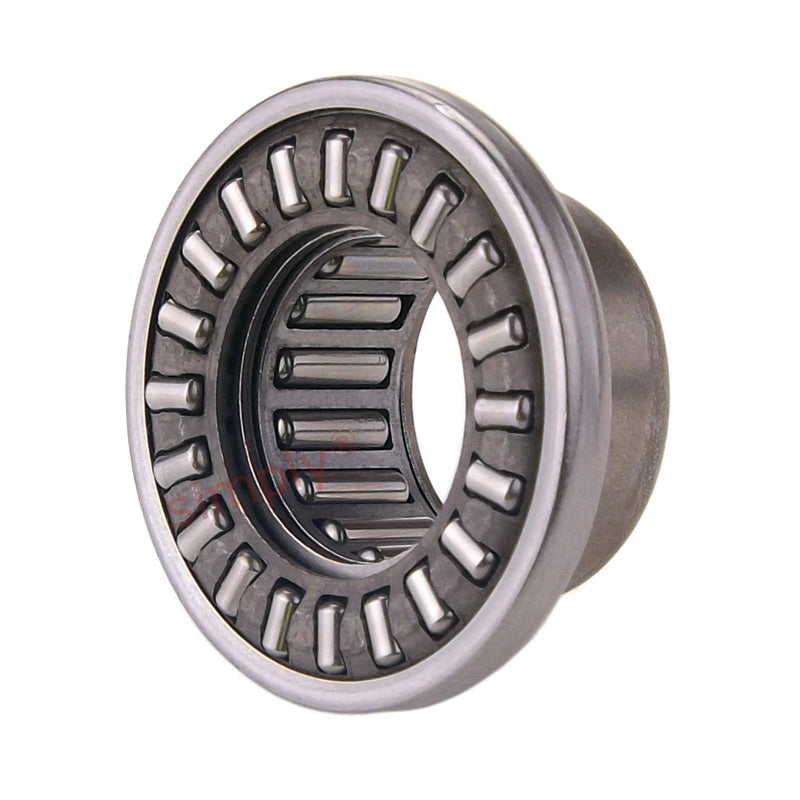

Major Brand RAX 570 Needle Combined Bearing with Needle Thrust Cage 70x85x32mm Allow 2-3 Days
Major Brand RAX 570 Needle Combined Bearing with Needle Thrust Cage 70x85x32mm Allow 2-3 Days
Regular price
€866,95
ex VAT
Regular price
Sale price
€866,95
ex VAT
In stock
Price Break
10+
€659,72
19+
€622,66
29+
€615,25
39+
€607,84
49+
€600,42
74+
€593,01
99+
€555,95
199+
€548,53
249+
€541,12
499+
€533,71
999+
€518,88
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 32mm
- Width:
- 85mm
Technical
Technical
| Fw | 70mm |
|---|---|
| C | 32mm |
| D | 85mm |
| Da | 95.4mm |
| Eb | 73.5mm |
| Ea | 89.5mm |
| C1 | 11mm |
| C2 | 11mm |
| rs min | 1.3mm |
| Radial dynamic load | 36.1 kN |
| Radial static load | 84.7 kN |
| Axial dynamic load | 77 kN |
| Axial static load | 295 kN |
| Speed rating | 3000 rpm |
| Inner ring | JR 60x70x25 kN |
| Weight | 0.435 kg |
