SKU: RAXN470-MB

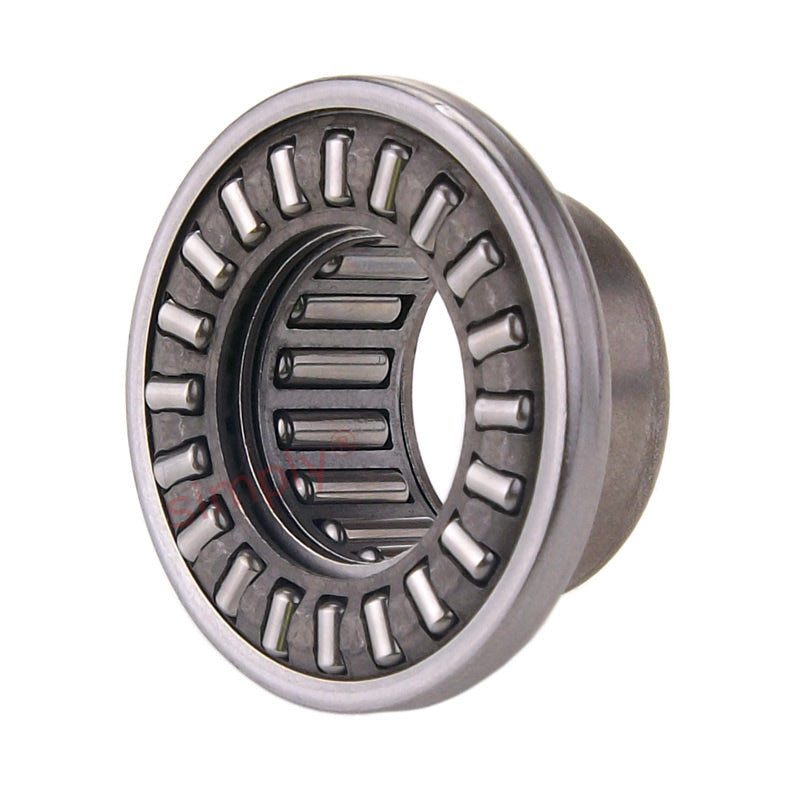

Major Brand RAXN 470 Needle Combined Bearing with Needle Thrust Cage 70x85x28mm Allow 2-3 Days
Major Brand RAXN 470 Needle Combined Bearing with Needle Thrust Cage 70x85x28mm Allow 2-3 Days
Regular price
€1.015,95
ex VAT
Regular price
Sale price
€1.015,95
ex VAT
In stock
Price Break
10+
€773,45
19+
€729,99
29+
€721,30
39+
€712,61
49+
€703,92
74+
€695,23
99+
€651,78
199+
€643,09
249+
€634,40
499+
€625,71
999+
€608,33
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 28mm
- Width:
- 85mm
Technical
Technical
| Fw | 70mm |
|---|---|
| C | 28mm |
| D | 85mm |
| Da | 95mm |
| Eb | 73.5mm |
| Ea | 89.2mm |
| C1 | 7mm |
| C2 | 11mm |
| rs min | 1.3mm |
| Radial dynamic load | 36.1 kN |
| Radial static load | 84.7 kN |
| Axial dynamic load | 34.5 kN |
| Axial static load | 223 kN |
| Speed rating | 3000 rpm |
| Inner ring | JR 60x70x25 kN |
| Weight | 0.386 kg |
