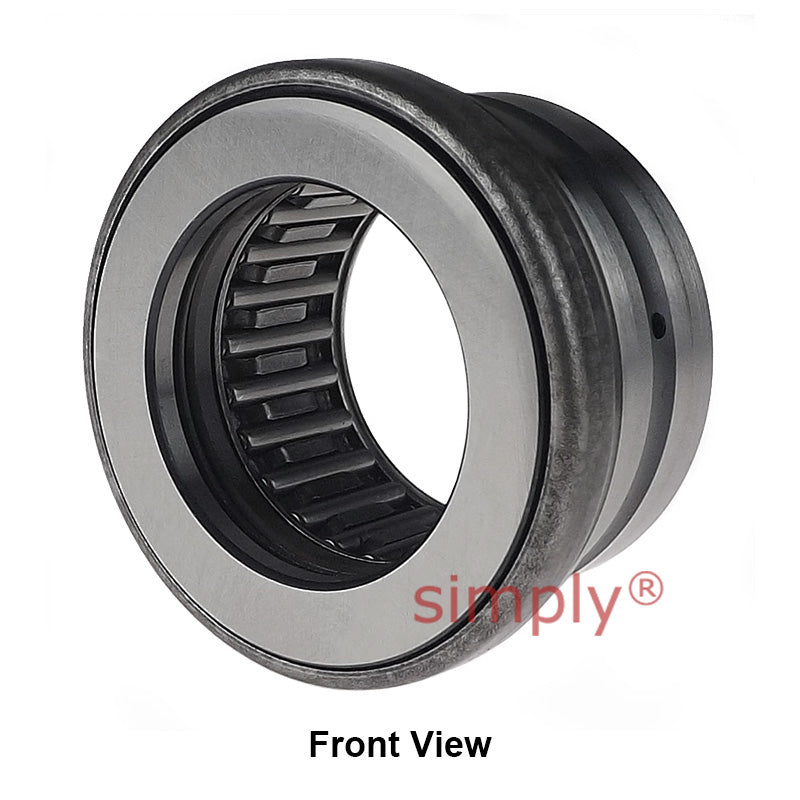

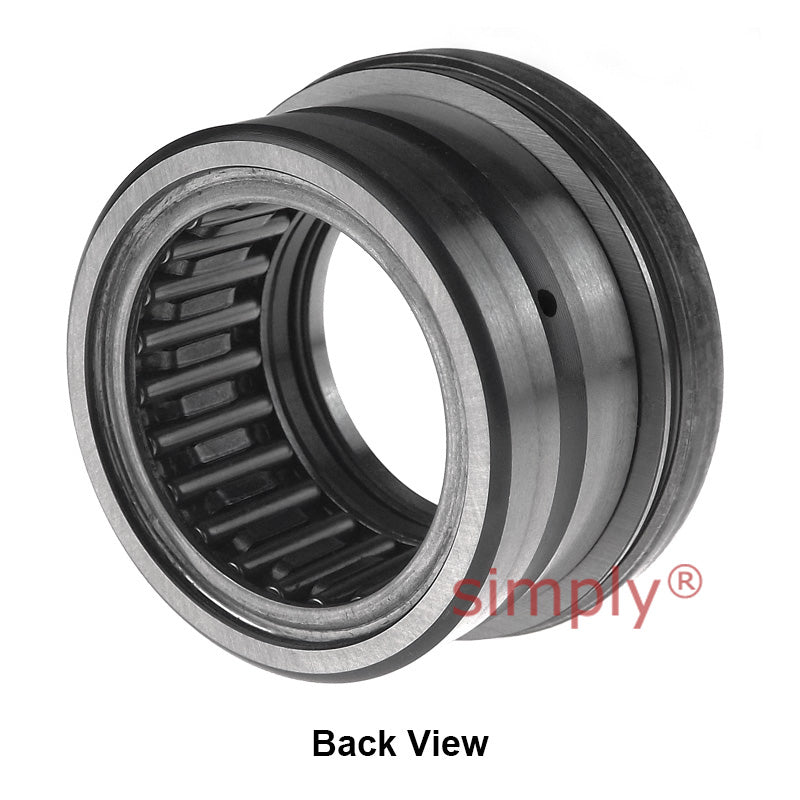

Nadella RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days
Nadella RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days
Out of stock
Share this product
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 72mm
- Width:
- 36mm
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 72mm |
| C | 36mm |
| da | 60mm |
| Da | 86mm |
| C1 | 15mm |
| C2 | 11mm |
| rs min | 1.3mm |
| Radial dynamic load | 31.9 kN |
| Radial static load | 78.1 kN |
| Axial dynamic load | 71 kN |
| Axial static load | 255 kN |
| Speed rating | 3.5 rpm |
| Weight | 0.423 kg |
