SKU: RCJT2

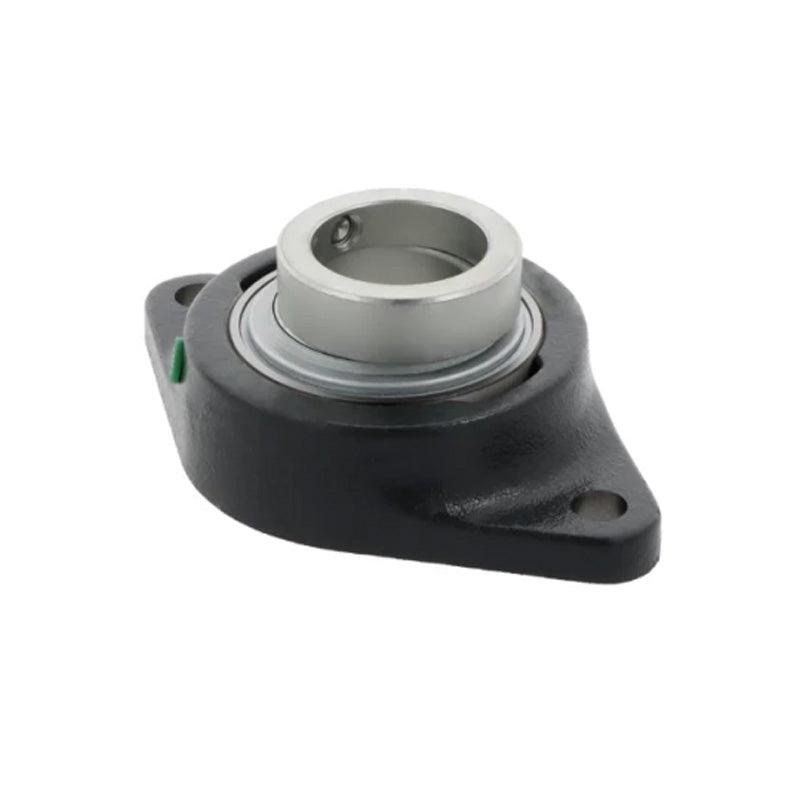

INA RCJT2 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 2 inch Bore - Allow 2-3 Days
INA RCJT2 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 2 inch Bore - Allow 2-3 Days
Regular price
€41,95
ex VAT
Regular price
Sale price
€41,95
ex VAT
In stock
Price Break
4+
€35,09
9+
€33,67
19+
€32,96
29+
€31,90
39+
€31,19
49+
€29,42
59+
€24,81
69+
€0,00
79+
€0,00
89+
€0,00
99+
€0,00
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- RCJT
- Bolt Hole Centres:
- 183.998mm = 7.244 inch
Technical
Technical
| d | 2 inch |
|---|---|
| d | 50.8mm |
| H | 8.898 inch |
| H | 226mm |
| U | 2.937 inch |
| U | 74.6mm |
| A | 1.811 inch |
| A1 | 0.669 inch |
| A2 | 1.22 inch |
| B1 | 2.811 inch |
| d3 | 2.992 inch |
| J | 7.244 inch |
| L | 5.295 inch |
| N | 0.669 inch |
| Q | 1/8 NPT |
| V | 5.295 inch |
| Mass | 8.41 lbs |
| Basic dynamic load rating Cr | 9800 lbf |
| Basic dynamic load rating Cr | 46000 N |
| Basic static load rating Cor | 6600 lbf |
| Basic static load rating Cor | 29000 N |
| Designation of housing | GG.CJT11 |
| Designation of bearing | G1200-KRR-B-AS2/V |
