SKU: RNA0-12X22X12-NTN

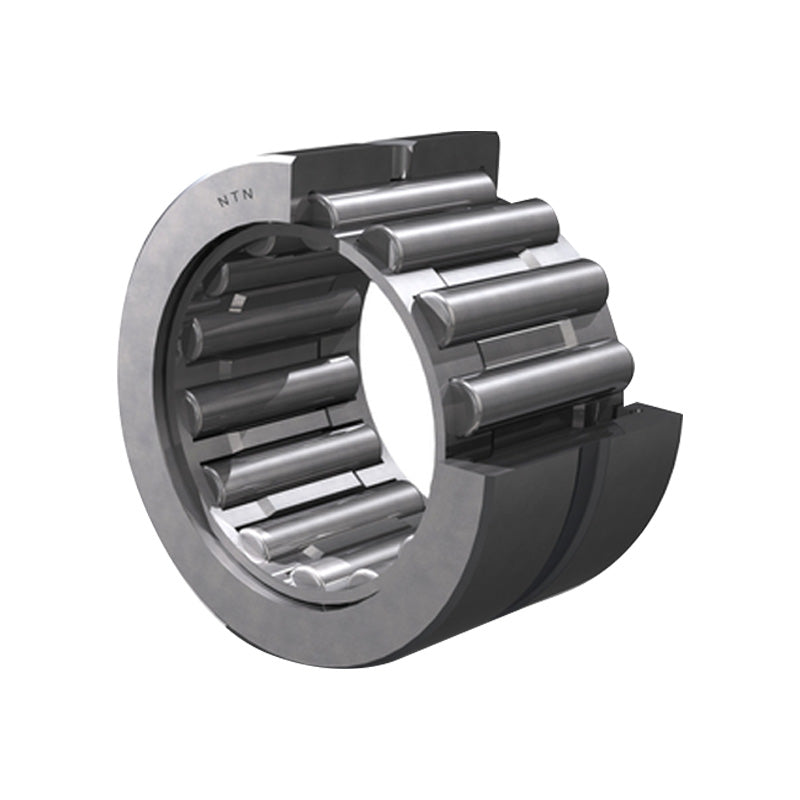

NTN RNA0-12X22X12 Seperable Machined Needle Roller Bearing no Shaft Sleeve 12x22x12mm - Allow 2-3 Days

NTN RNA0-12X22X12 Seperable Machined Needle Roller Bearing no Shaft Sleeve 12x22x12mm - Allow 2-3 Days
Regular price €10,95 ex VAT
Regular price Sale price €10,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €8,76
4+ €8,41
9+ €8,23
19+ €7,97
49+ €7,79
99+ €7,35
499+ €6,20
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 12mm
D - Outside diameter 22mm
C - Width of bearing, drawn cup or outer ring 12mm
E - Upper roller diameter 18mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 8.65 kN
C0r - Static load rating 8 kN
N - Grease lubrication limit speed 17000 tr/min
N - Oil lubrication limit speed 26000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
db - Inner ring shoulder diameter 17.6mm
Da max - Outer ring maximum shoulder diameter 20mm
Db max - Outer ring maximum smooth shaft shoulder diameter 12.3mm
ras max - Maximum shaft & housing fillet radius 0.3mm
