SKU: RNA0-15X23X13-NTN

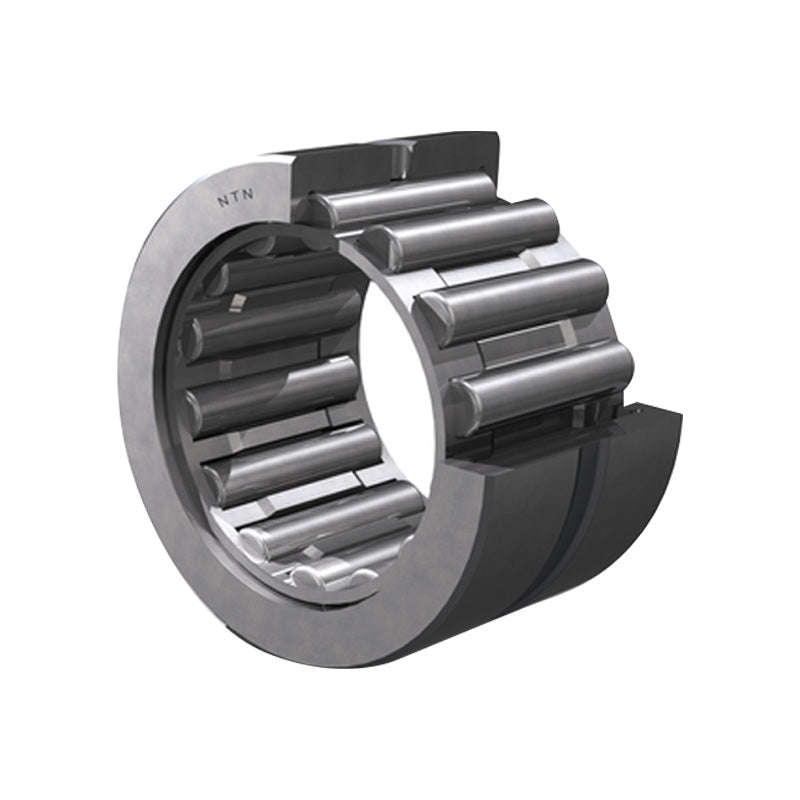

NTN RNA0-15X23X13 Seperable Machined Needle Roller Bearing no Shaft Sleeve 15x23x13mm - Allow 2-3 Days

NTN RNA0-15X23X13 Seperable Machined Needle Roller Bearing no Shaft Sleeve 15x23x13mm - Allow 2-3 Days
Regular price €15,95 ex VAT
Regular price Sale price €15,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €13,13
4+ €12,60
9+ €12,33
19+ €11,93
49+ €11,67
99+ €11,01
499+ €9,28
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 15mm
D - Outside diameter 23mm
C - Width of bearing, drawn cup or outer ring 13mm
E - Upper roller diameter 19mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 8.25 kN
C0r - Static load rating 10.2 kN
N - Grease lubrication limit speed 15000 tr/min
N - Oil lubrication limit speed 23000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
db - Inner ring shoulder diameter 18.6mm
Da max - Outer ring maximum shoulder diameter 21mm
Db max - Outer ring maximum smooth shaft shoulder diameter 15.4mm
ras max - Maximum shaft & housing fillet radius 0.3mm
