SKU: RNA0-22X30X26ZW-NTN

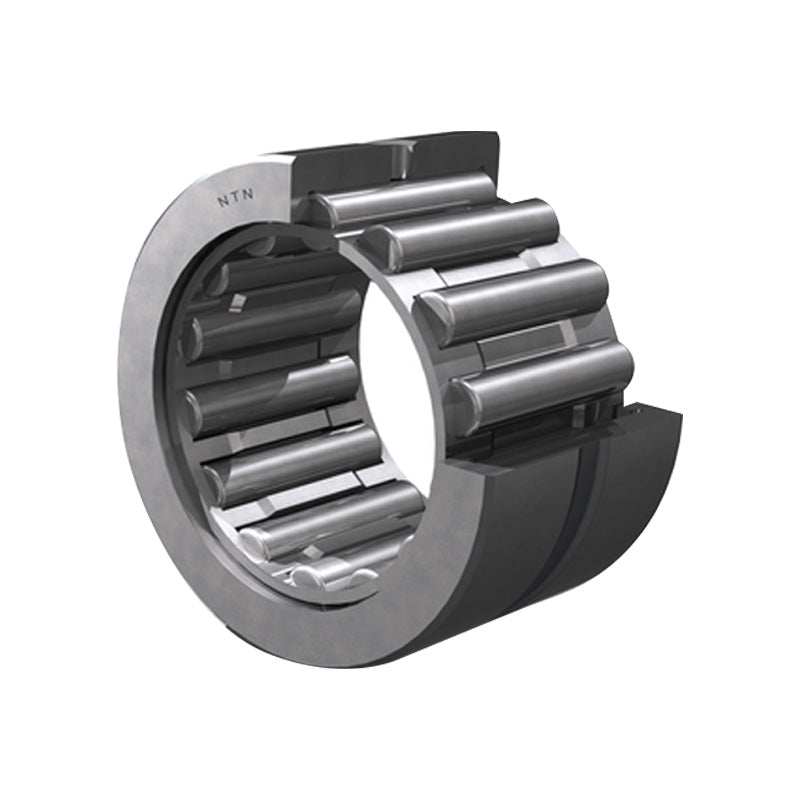

NTN RNA0-22X30X26ZW Seperable Double Row Machined Needle Roller Bearing no Shaft Sleeve 22x30x26mm - Allow 2-3 Days

NTN RNA0-22X30X26ZW Seperable Double Row Machined Needle Roller Bearing no Shaft Sleeve 22x30x26mm - Allow 2-3 Days
Regular price €18,95 ex VAT
Regular price Sale price €18,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €15,33
4+ €14,71
9+ €14,40
19+ €13,93
49+ €13,62
99+ €12,85
499+ €10,84
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

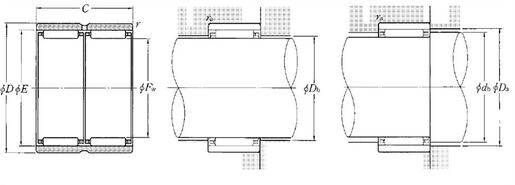

Fw - Under rollers diameter 22mm
D - Outside diameter 30mm
C - Width of bearing, drawn cup or outer ring 26mm
E - Upper roller diameter 26mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 17.5 kN
C0r - Static load rating 30.5 kN
N - Grease lubrication limit speed 12000 tr/min
N - Oil lubrication limit speed 18000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
db - Inner ring shoulder diameter 25.6mm
Da max - Outer ring maximum shoulder diameter 28mm
Db max - Outer ring maximum smooth shaft shoulder diameter 22.4mm
ras max - Maximum shaft & housing fillet radius 0.3mm
