SKU: RNA0-45X55X17-NTN

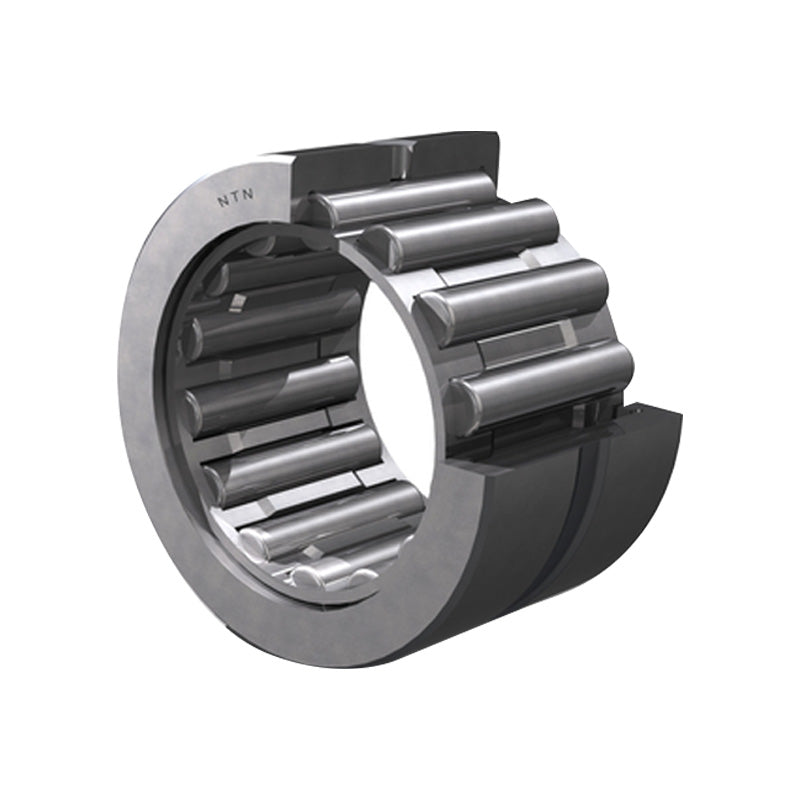

NTN RNA0-45X55X17 Seperable Machined Needle Roller Bearing no Shaft Sleeve 45x55x17mm - Allow 2-3 Days
Allow 2-3 Days
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
NTN Needle Roller Bearings: These bearings deliver exceptional performance in compact applications, offering high load capacity, low friction, and long service life. Precision-engineered with high-quality needle rollers and advanced cage designs, these bearings ensure smooth, efficient operation even under heavy radial loads. Ideal for automotive transmissions, industrial machinery, power tools, and robotic systems, NTN bearings are trusted worldwide for their durability, accuracy, and consistent reliability in demanding environments.
Benefits: High performance, economical, rigid machined outer ring
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 55mm
- Width:
- 17mm
Technical
| Fw - Under rollers diameter | 45mm |
|---|---|
| D - Outside diameter | 55mm |
| C - Width of bearing, drawn cup or outer ring | 17mm |
| E - Upper roller diameter | 50mm |
| rs - Minimum fillet radius | 0.3mm |
| Lubrication hole on outer ring? | No |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 22.3 kN |
| C0r - Static load rating | 44.5 kN |
| N - Grease lubrication limit speed | 6000 tr/min |
| N - Oil lubrication limit speed | 9000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
| db - Inner ring shoulder diameter | 49.2mm |
| Da max - Outer ring maximum shoulder diameter | 53mm |
| Db max - Outer ring maximum smooth shaft shoulder diameter | 45.6mm |
| ras max - Maximum shaft & housing fillet radius | 0.3mm |
