SKU: RNA4901-MB

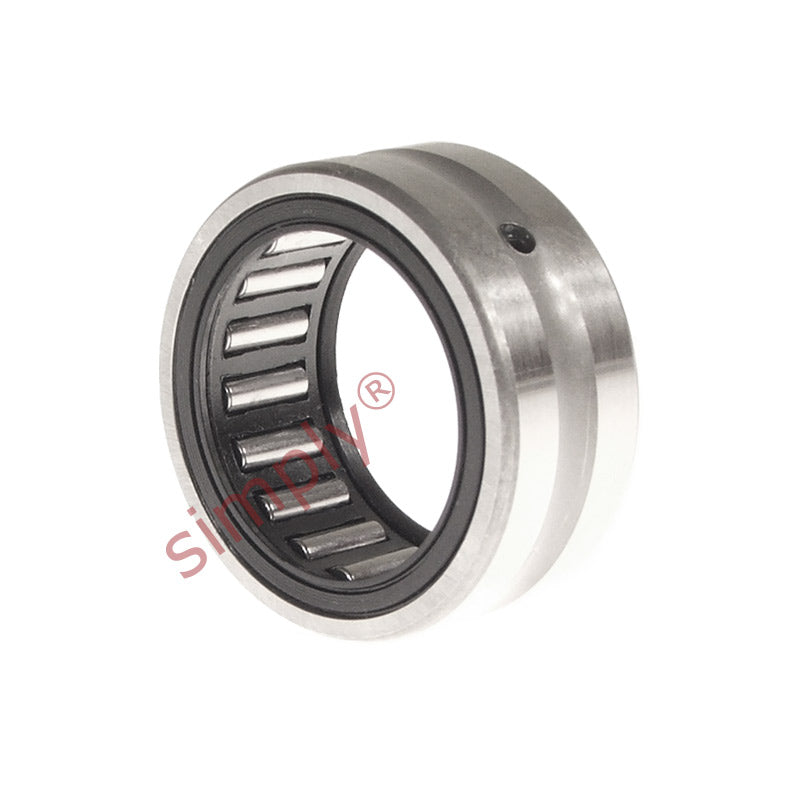

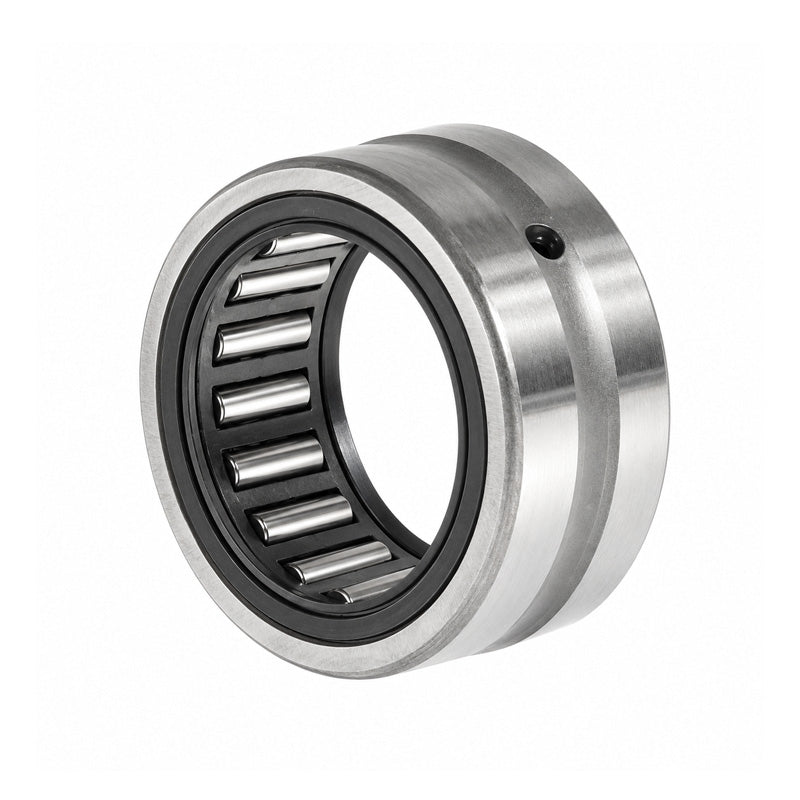

Major Brand RNA4901 Needle Roller Bearing With Flanges without Shaft Sleeve 16x24x13mm
Major Brand RNA4901 Needle Roller Bearing With Flanges without Shaft Sleeve 16x24x13mm
Regular price
€15,97
ex VAT
Regular price
Sale price
€15,97
ex VAT
In stock
Price Break
10+
€14,21
19+
€13,41
29+
€13,26
39+
€13,10
49+
€12,94
74+
€12,78
99+
€11,98
199+
€11,82
249+
€11,66
499+
€11,50
999+
€11,18
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 24mm
- Width:
- 13mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 24mm |
| C | 13mm |
| Dynamic load | 9900 N |
| Static load | 12200 N |
| Fatigue load limit Pu | 1460 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| r1r2 | 0.3mm |
| Da max | 22mm |
| ra max | 0.3mm |
| Seal | G/SD16x24x3 |
| Weight | 17 g |
