SKU: RNA4907LL/3AS-NTN

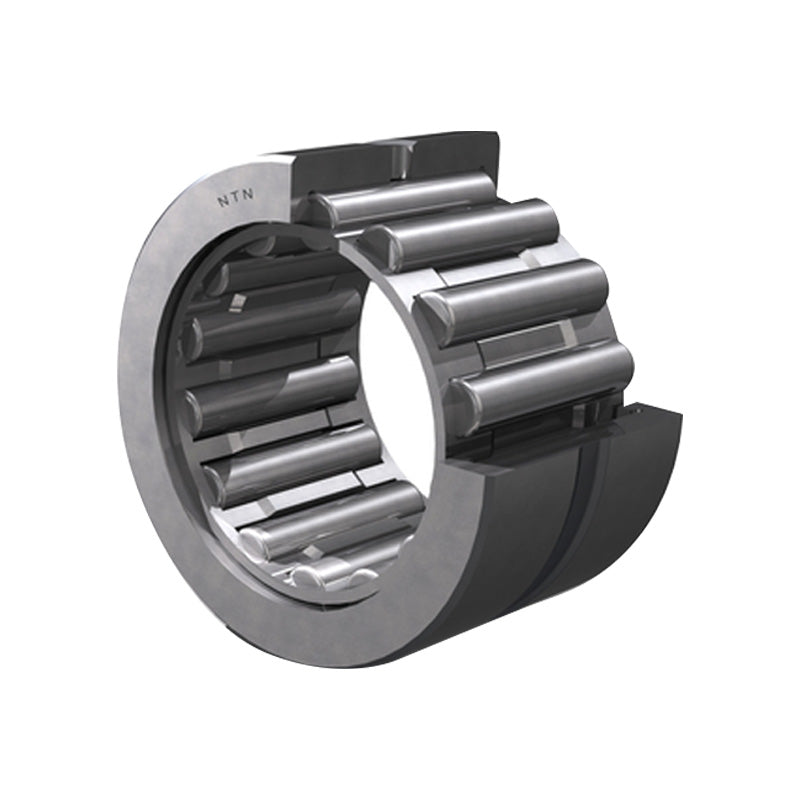

NTN RNA4907LL/3AS Machined Needle Roller Bearing no Shaft Sleeve 42x55x20mm - Allow 2-3 Days

NTN RNA4907LL/3AS Machined Needle Roller Bearing no Shaft Sleeve 42x55x20mm - Allow 2-3 Days
Regular price €31,95 ex VAT
Regular price Sale price €31,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €26,30
4+ €25,24
9+ €24,71
19+ €23,91
49+ €23,38
99+ €22,05
499+ €18,60
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 42mm
D - Outside diameter 55mm
C - Width of bearing, drawn cup or outer ring 20mm
rs - Minimum fillet radius 0.6mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 22.7 kN
C0r - Static load rating 39.5 kN
N - Grease lubrication limit speed 4800 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
Da max - Outer ring maximum shoulder diameter 45mm
Db max - Outer ring maximum smooth shaft shoulder diameter 51mm
ras max - Maximum shaft & housing fillet radius 0.6mm
