SKU: RNA4919-EU

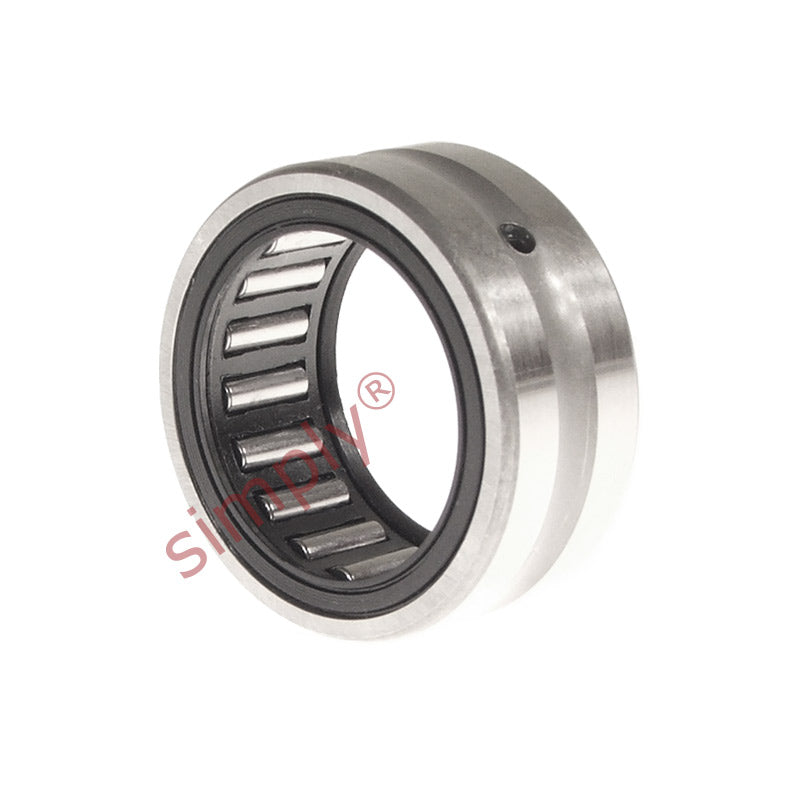

RNA4919 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 110x130x35mm
RNA4919 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 110x130x35mm
Regular price
€144,17
ex VAT
Regular price
Sale price
€144,17
ex VAT
In stock
Price Break
10+
€128,31
19+
€121,10
29+
€119,66
39+
€118,22
49+
€116,78
74+
€115,34
99+
€108,13
199+
€106,69
249+
€105,24
499+
€103,80
999+
€100,92
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 130mm
- Width:
- 35mm
Technical
Technical
| Fw | 110mm |
|---|---|
| D | 130mm |
| C | 35mm |
| Dynamic load C | 114000 N |
| Static load Co | 270000 N |
| Fatigue load limit Pu | 34000 N |
| Speed in grease | 2400 rpm |
| Speed in oil | 3600 rpm |
| r1r2 | 1.1mm |
| Da max | 123.5mm |
| ra max | 1mm |
| Seal | CR110x130x12CRW1R |
| Weight | 720 g |
