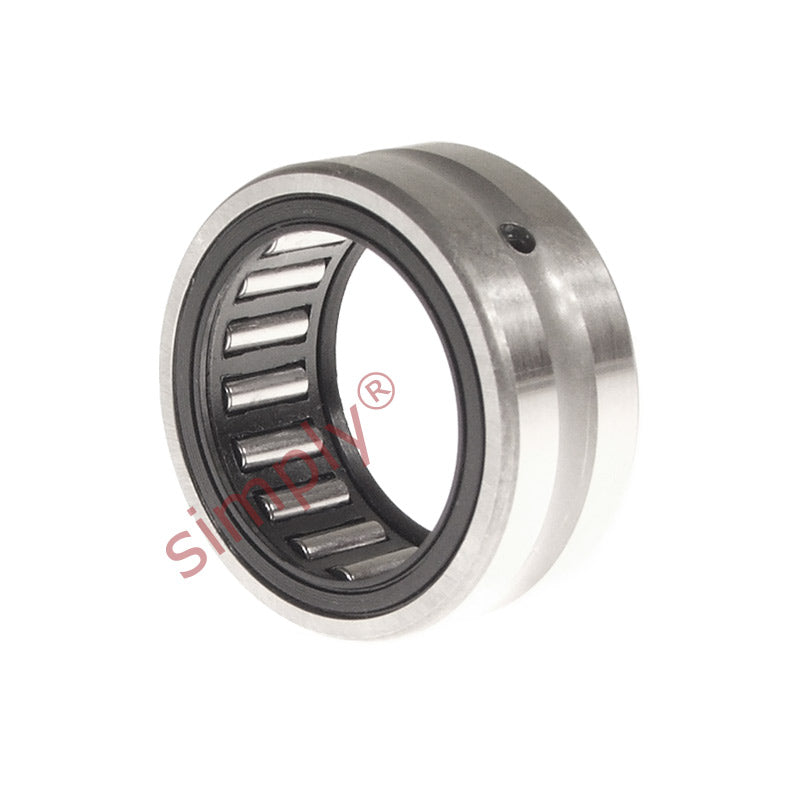

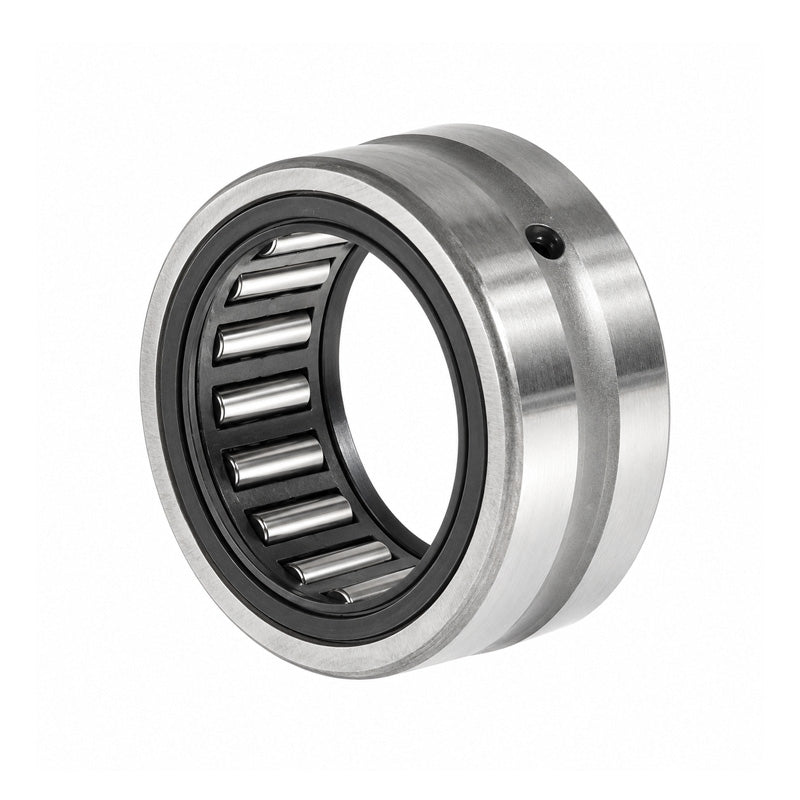

Major Brand RNA6901 Needle Roller Bearing With Flanges without Shaft Sleeve 16x24x22mm
Major Brand RNA6901 Needle Roller Bearing With Flanges without Shaft Sleeve 16x24x22mm
Regular price
€12,64
ex VAT
Regular price
Sale price
€12,64
ex VAT
In stock
Price Break
10+
€11,25
19+
€10,62
29+
€10,49
39+
€10,36
49+
€10,24
74+
€10,11
99+
€9,48
199+
€9,35
249+
€9,23
499+
€9,10
999+
€8,85
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 24mm
- Width:
- 22mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 24mm |
| C | 22mm |
| Dynamic load | 16100 N |
| Static load | 23200 N |
| Fatigue load limit Pu | 2900 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| r1r2 | 0.3mm |
| Da max | 22mm |
| ra max | 0.3mm |
| Seal | G/SD16x24x3 |
| Weight | 31 g |
