SKU: RNA6902-EU

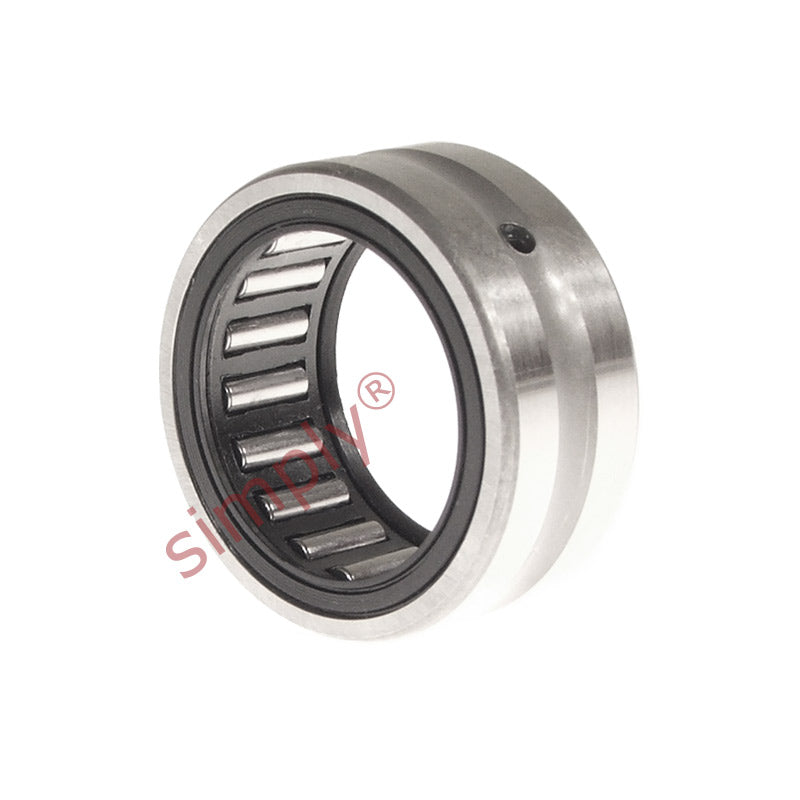

RNA6902 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 20x28x23mm
RNA6902 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 20x28x23mm
Regular price
€8,72
ex VAT
Regular price
Sale price
€8,72
ex VAT
In stock
Price Break
10+
€7,76
19+
€7,32
29+
€7,24
39+
€7,15
49+
€7,06
74+
€6,98
99+
€6,54
199+
€6,45
249+
€6,37
499+
€6,28
999+
€6,10
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 28mm
- Width:
- 23mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 28mm |
| C | 23mm |
| Dynamic load C | 17200 N |
| Static load Co | 27000 N |
| Fatigue load limit Pu | 3400 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| r1r2 | 0.3mm |
| Da max | 26mm |
| ra max | 0.3mm |
| Seal | G/SD20x28x4 |
| Weight | 40 g |
