SKU: RNA6903-EU

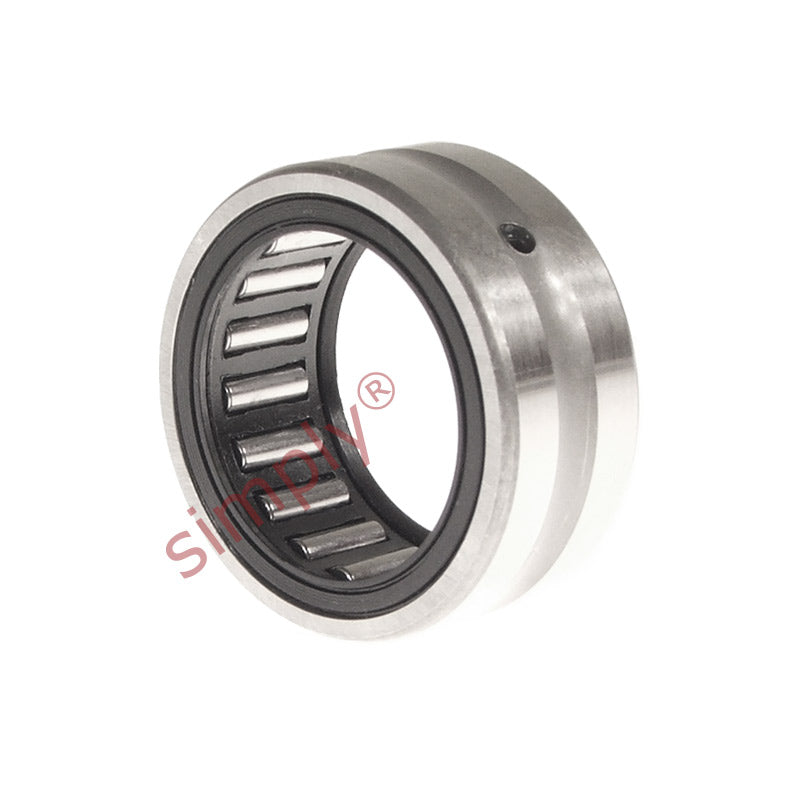

RNA6903 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 22x30x23mm
RNA6903 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 22x30x23mm
Regular price
€16,95
ex VAT
Regular price
Sale price
€16,95
ex VAT
In stock
Price Break
10+
€12,85
19+
€12,13
29+
€11,99
39+
€11,84
49+
€11,70
74+
€11,55
99+
€10,83
199+
€10,69
249+
€10,54
499+
€10,40
999+
€10,11
Share this product
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 30mm
- Width:
- 23mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 30mm |
| C | 23mm |
| Dynamic load C | 18700 N |
| Static load Co | 30500 N |
| Fatigue load limit Pu | 3900 N |
| Speed in grease | 12000 rpm |
| Speed in oil | 18000 rpm |
| r1r2 | 0.3mm |
| Da max | 28mm |
| ra max | 0.3mm |
| Seal | G/SD22x30x4 |
| Weight | 42 g |
