SKU: RNA6910R-NTN

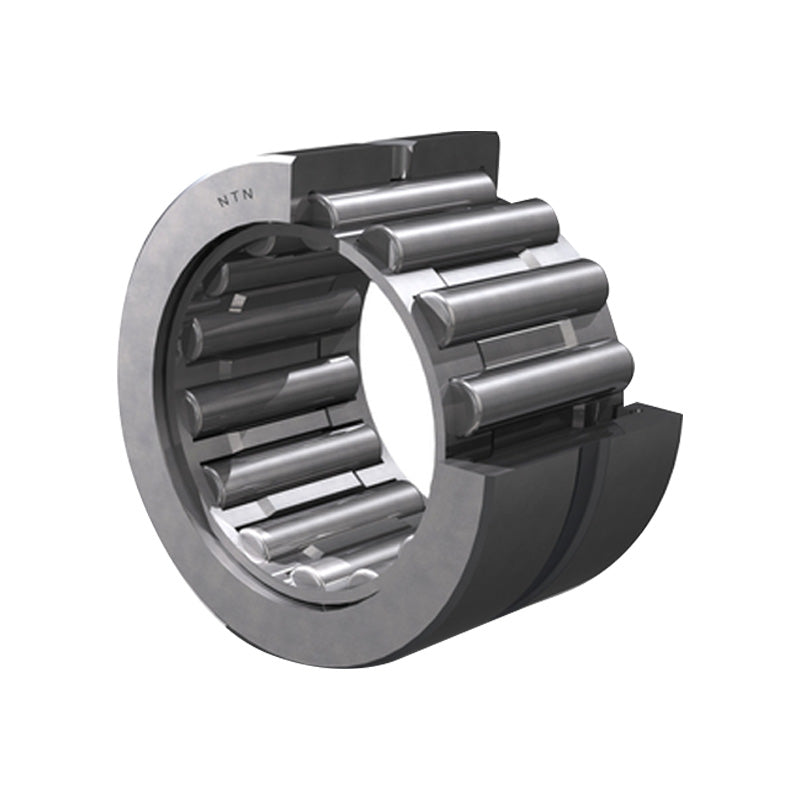

NTN RNA6910R Machined Needle Roller Bearing no Shaft Sleeve 58x72x40mm - Allow 2-3 Days

NTN RNA6910R Machined Needle Roller Bearing no Shaft Sleeve 58x72x40mm - Allow 2-3 Days
Regular price €64,95 ex VAT
Regular price Sale price €64,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €54,81
4+ €52,59
9+ €51,48
19+ €49,82
49+ €48,72
99+ €45,95
499+ €38,75
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 58mm
D - Outside diameter 72mm
C - Width of bearing, drawn cup or outer ring 40mm
rs - Minimum fillet radius 0.6mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 74 kN
C0r - Static load rating 139 kN
N - Grease lubrication limit speed 4700 tr/min
N - Oil lubrication limit speed 7000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 68mm
ras max - Maximum shaft & housing fillet radius 0.6mm
