SKU: RNAO60x78x40-EU

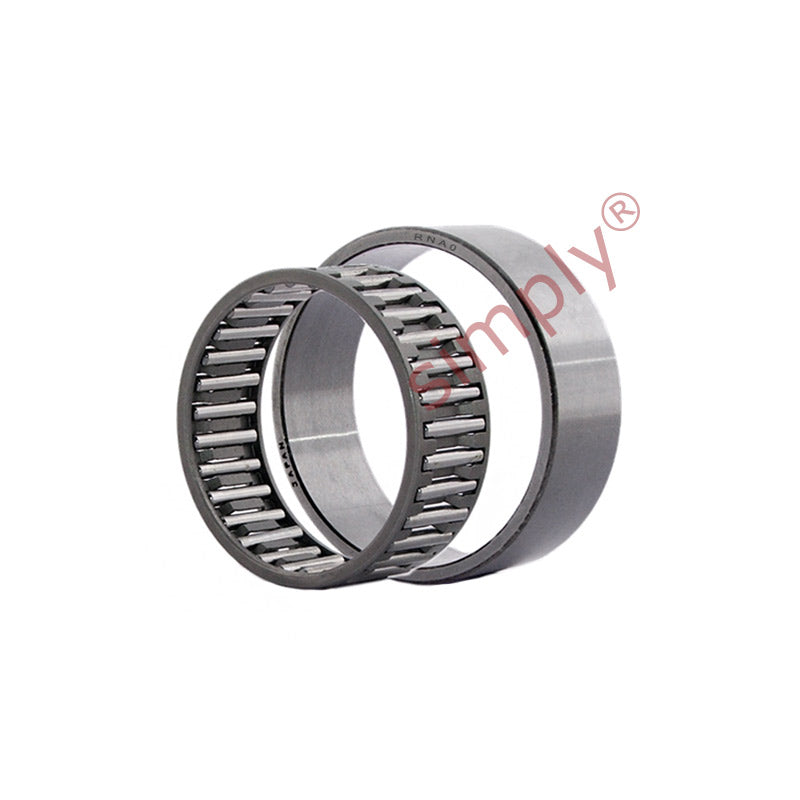

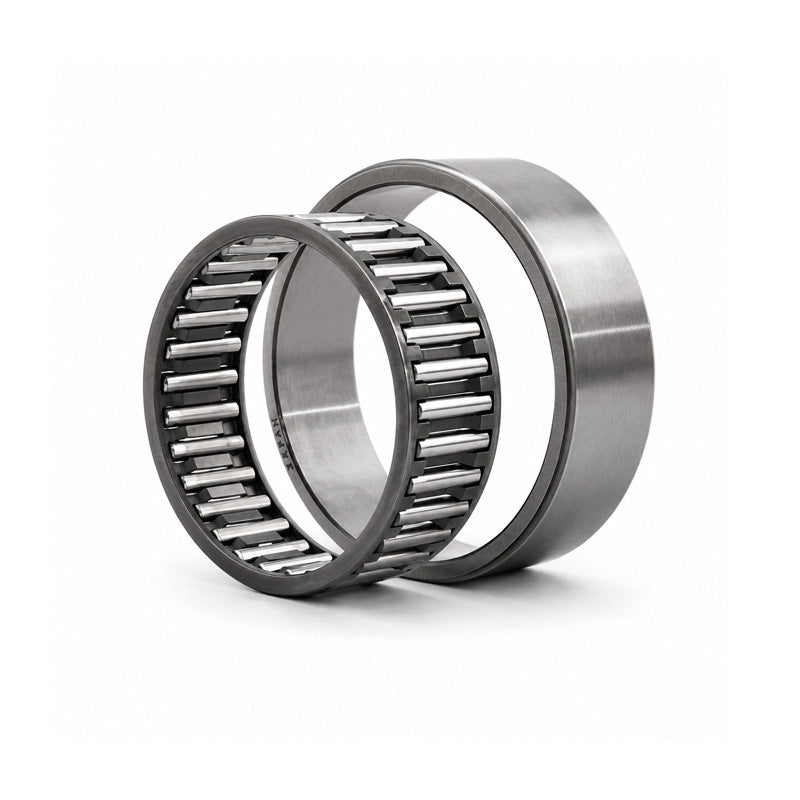

RNAO60x78x40 Budget Needle Roller Bearing no Flanges or Shaft Sleeve

Name: RNAO60x78x40 Budget Needle Roller Bearing no Flanges or Shaft Sleeve
Brand: Gen
SKU: RNAO60x78x40-EU
Price: 79.95 EUR
Availability: InStock

€79,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €60,57

19+ €57,17

29+ €56,49

39+ €55,81

49+ €55,13

74+ €54,45

99+ €51,04

199+ €50,36

249+ €49,68

499+ €49,00

999+ €47,64

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Needle Roller Bearing without Flanges and without Inner ring: Supplied without inner rings the caged needle and outer shell are separable items enabling either mounting together or individually. The cages can be shaft mounted for assembly into an already pre-installed outer ring component.
Benefits: Supplied without inner ring, separable - ease of mounting, can be used with a wide range of available inner rings

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 60mm
Outside Diameter:: 78mm
Width:: 40mm

Technical

Fw	60mm
D	78mm
C	40mm
Dynamic load C	72100 N
Static load Co	173000 N
Fatigue load limit Pu	21200 N
Speed in grease	4800 rpm
Speed in oil	6700 rpm
E	68mm
r1r2 min	1mm
da	67.2mm
Da	68.8mm
Db	61mm
ra max	1mm
Weight	440 g
