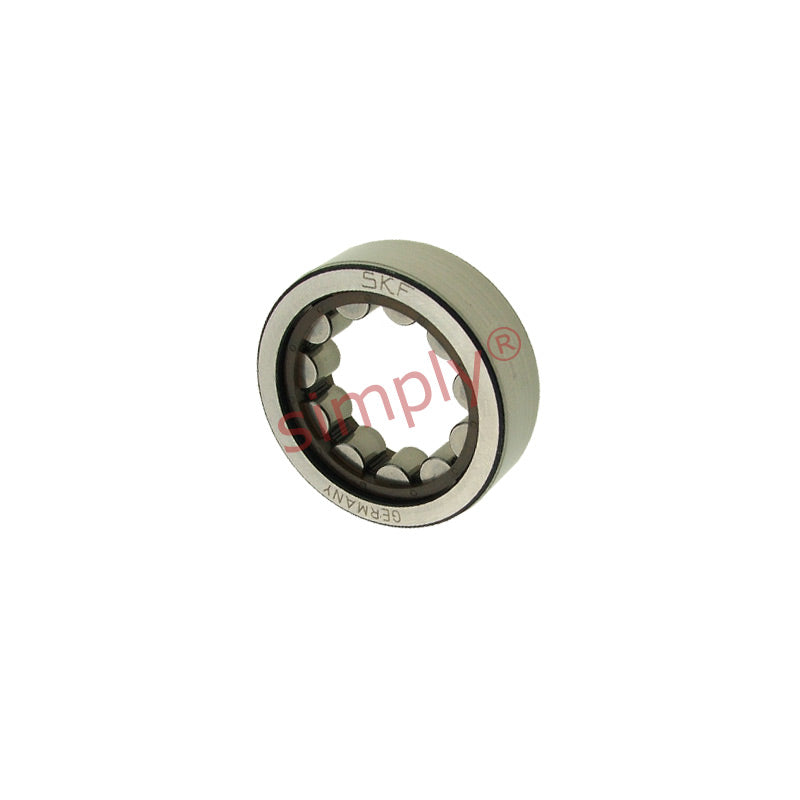

SKF RNU203TN9 Single Row Cylindrical Roller Bearing 22.9x40x12mm
SKF RNU203TN9 Single Row Cylindrical Roller Bearing 22.9x40x12mm
Regular price
€26,95
ex VAT
Regular price
Sale price
€26,95
ex VAT
In stock
Price Break
10+
€20,43
19+
€19,28
29+
€19,05
39+
€18,82
49+
€18,59
74+
€18,36
99+
€17,21
199+
€16,98
249+
€16,75
499+
€16,53
999+
€16,07
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 22.9mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
Technical
Technical
| d | 22.9mm |
|---|---|
| D | 40mm |
| C | 12mm |
| C1 | 3.25mm |
| Dynamic load | 10.8 kN |
| Static load | 5.2 kN |
| Fatigue load limit Pu | 1.02 kN |
| Reference speed | 20000rpm |
| Limiting speed | 22000rpm |
| r1,2min | 0.6mm |
| Weight | 0.044kg |
