SKU: RPNA20/35-MB

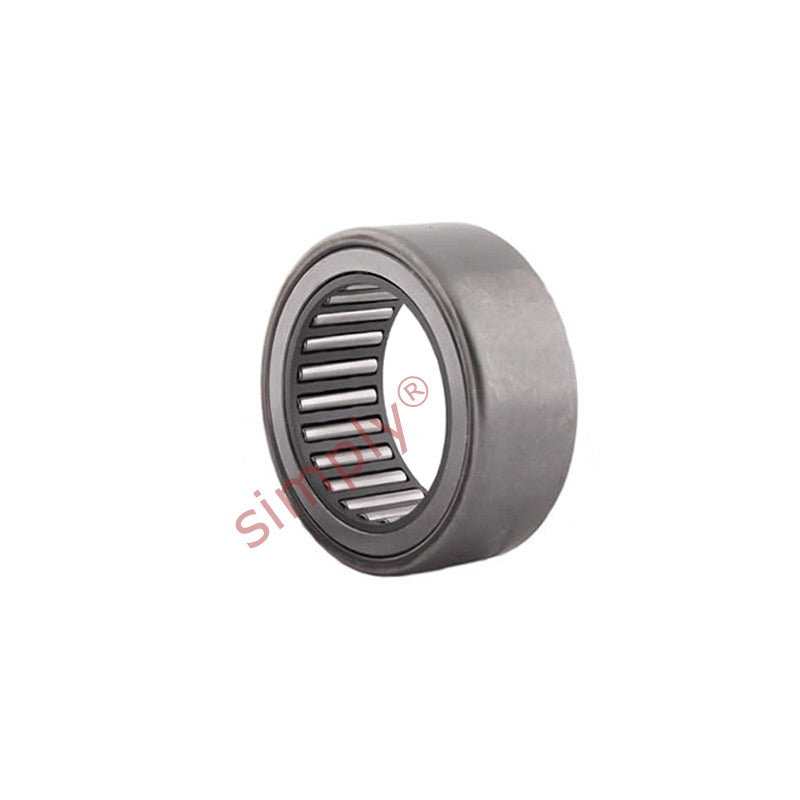

Major Brand RPNA20/35 Needle Roller Bearing Alignment Type Without Shaft Sleeve 20x35x16
Major Brand RPNA20/35 Needle Roller Bearing Alignment Type Without Shaft Sleeve 20x35x16
Regular price
€51,95
ex VAT
Regular price
Sale price
€51,95
ex VAT
In stock
Price Break
10+
€38,90
19+
€36,72
29+
€36,28
39+
€35,84
49+
€35,41
74+
€34,97
99+
€32,78
199+
€32,35
249+
€31,91
499+
€31,47
999+
€30,60
Description
Description
|
Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 35mm |
| B | 16mm |
| Dynamic load | 13200 N |
| Static load | 19300 N |
| Fatigue load limit Pu | 2280 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| D1 | 30.5mm |
| r min | 1mm |
| Da min | 29.5mm |
| Da max | 30.5mm |
| ra max | 1mm |
| Weight | 62 g |
