SKU: RPNA40/55-EU

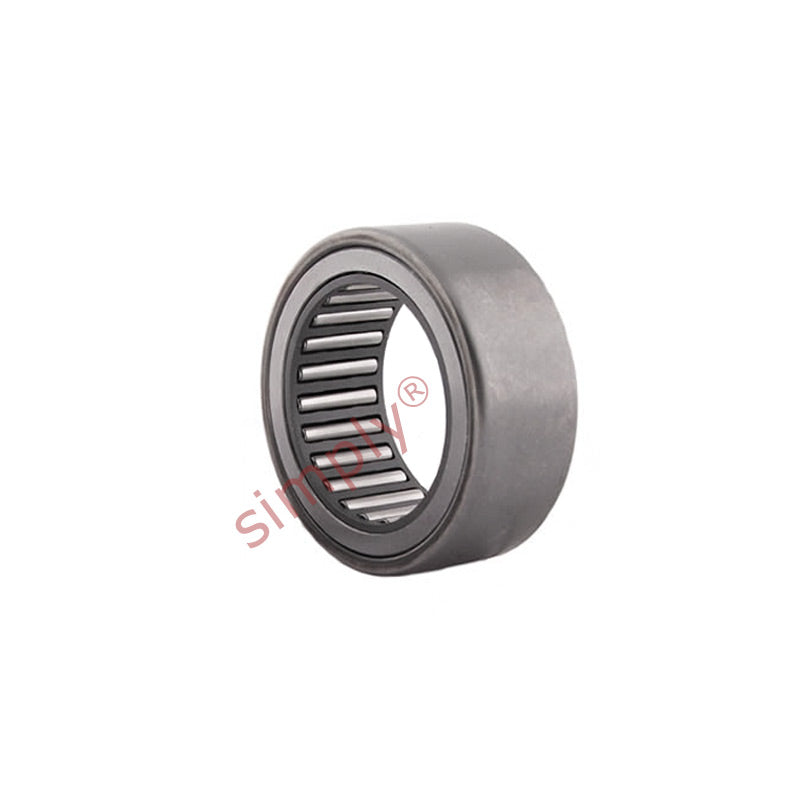

RPNA40/55 Budget Needle Roller Bearing Alignment Type no Inner Race 40x55x20
RPNA40/55 Budget Needle Roller Bearing Alignment Type no Inner Race 40x55x20
Regular price
€54,95
ex VAT
Regular price
Sale price
€54,95
ex VAT
In stock
Price Break
10+
€41,82
19+
€39,47
29+
€39,00
39+
€38,53
49+
€38,06
74+
€37,59
99+
€35,24
199+
€34,77
249+
€34,30
499+
€33,83
999+
€32,89
Description
Description
|
Budget Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 55mm
- Width:
- 20mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 55mm |
| B | 20mm |
| Dynamic load C | 26400 N |
| Static load Co | 51000 N |
| Fatigue load limit Pu | 6300 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| D1 | 50.5mm |
| r min | 1mm |
| Da min | 49.5mm |
| Da max | 50.5mm |
| ra max | 1mm |
| Weight | 140 g |
