SKU: RPNA45/62-EU

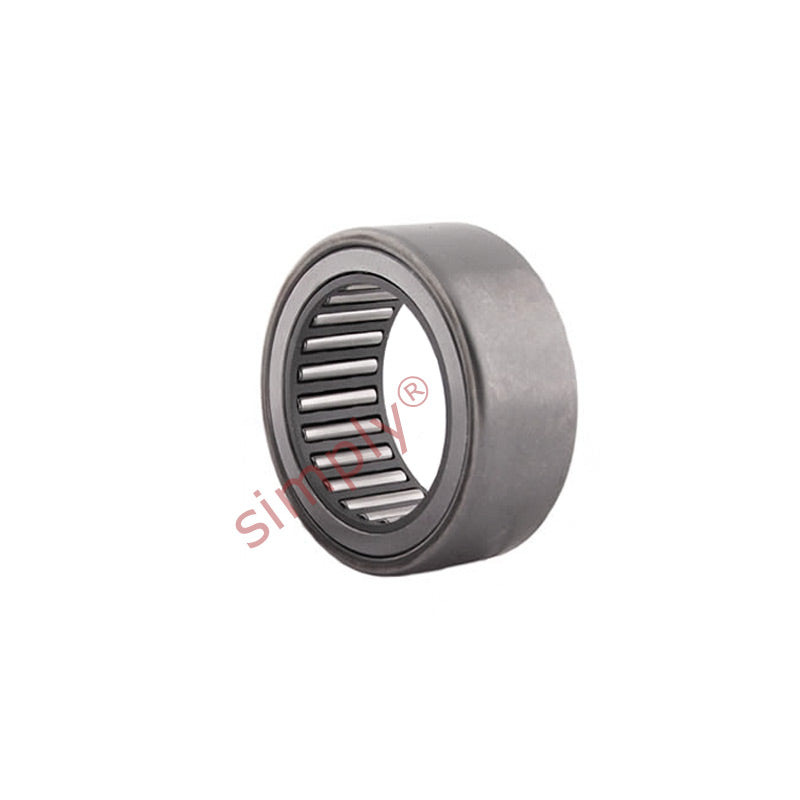

RPNA45/62 Budget Needle Roller Bearing Alignment Type no Inner Race 45x62x20
RPNA45/62 Budget Needle Roller Bearing Alignment Type no Inner Race 45x62x20
Regular price
€58,95
ex VAT
Regular price
Sale price
€58,95
ex VAT
In stock
Price Break
10+
€44,73
19+
€42,22
29+
€41,72
39+
€41,21
49+
€40,71
74+
€40,21
99+
€37,69
199+
€37,19
249+
€36,69
499+
€36,19
999+
€35,18
Description
Description
|
Budget Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 62mm
- Width:
- 20mm
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 62mm |
| B | 20mm |
| Dynamic load C | 27500 N |
| Static load Co | 57000 N |
| Fatigue load limit Pu | 7100 N |
| Speed in grease | 6300 rpm |
| Speed in oil | 9000 rpm |
| D1 | 58mm |
| r min | 1mm |
| Da min | 57mm |
| Da max | 58mm |
| ra max | 1mm |
| Weight | 180 g |
