SKU: S-UCFL211D1-NTN

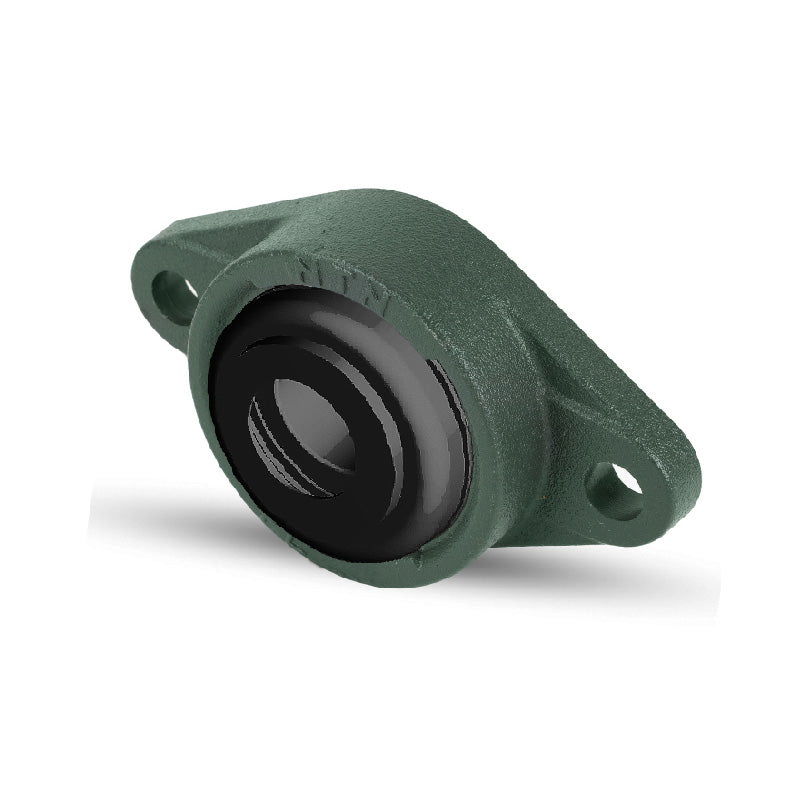

NTN S-UCFL211D1 Metric Two Bolt Oval Cast Iron Flange Housing with 55mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCFL211D1 Metric Two Bolt Oval Cast Iron Flange Housing with 55mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
€103,95
ex VAT
Regular price
Sale price
€103,95
ex VAT
In stock
Price Break
3+
€87,77
4+
€84,23
9+
€82,45
19+
€79,79
49+
€78,02
99+
€73,59
499+
€62,06
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCFL
- Bolt Hole Centres:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| H | 224mm |
| J | 184mm |
| A<sub>2</sub> | 25mm |
| A<sub>1</sub> | 18mm |
| A | 43mm |
| N | 19mm |
| L | 130mm |
| B | 55.6mm |
| S | 22.2mm |
| A<sub>4</sub> | 71mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 48 kN |
| Static load C<sub>0r</sub> | 29.2 kN |
| Fatigue load limit C<sub>u</sub> | 2.29 kN |
| --- | Unit information |
| Mass | 3 kg |
