SKU: S-UCP209D1-NTN

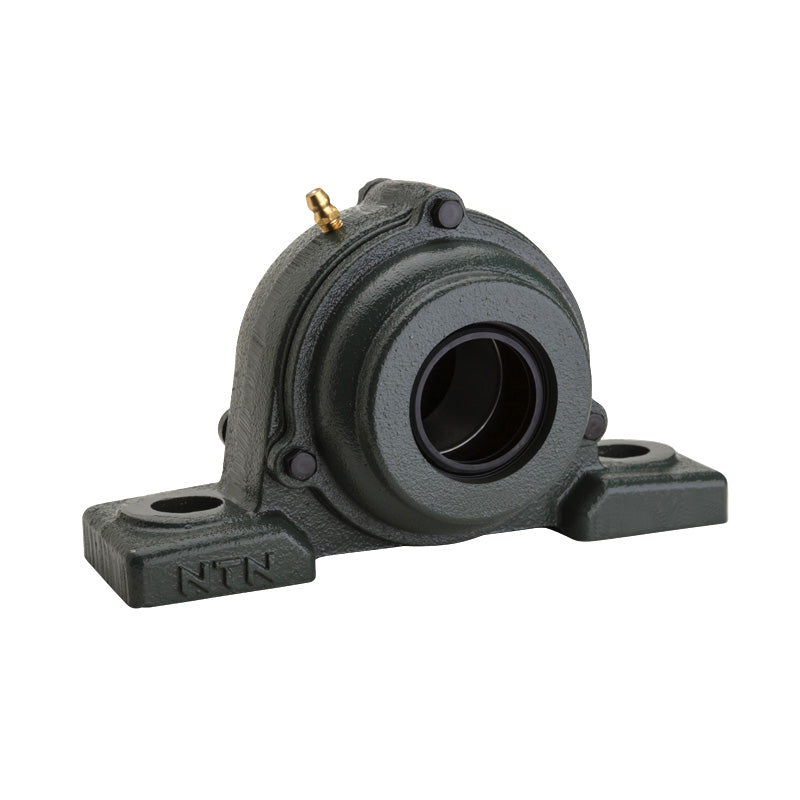

NTN S-UCP209D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCP209D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
€77,95
ex VAT
Regular price
Sale price
€77,95
ex VAT
In stock
Price Break
3+
€65,80
4+
€63,14
9+
€61,81
19+
€59,81
49+
€58,48
99+
€55,16
499+
€46,52
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCP
- Bolt Hole Centres:
- 146mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| H | 54mm |
| L | 190mm |
| J | 146mm |
| A | 54mm |
| N | 17mm |
| N<sub>1</sub> | 20mm |
| H<sub>1</sub> | 20mm |
| H<sub>2</sub> | 106mm |
| L<sub>1</sub> | 60mm |
| B | 49.2mm |
| S | 19mm |
| A<sub>4</sub> | 82mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 36 kN |
| Static load C<sub>0r</sub> | 20.4 kN |
| Fatigue load limit C<sub>u</sub> | 1.6 kN |
| --- | Unit information |
| Mass | 2.4 kg |
