SKU: SAKB18F-SKF

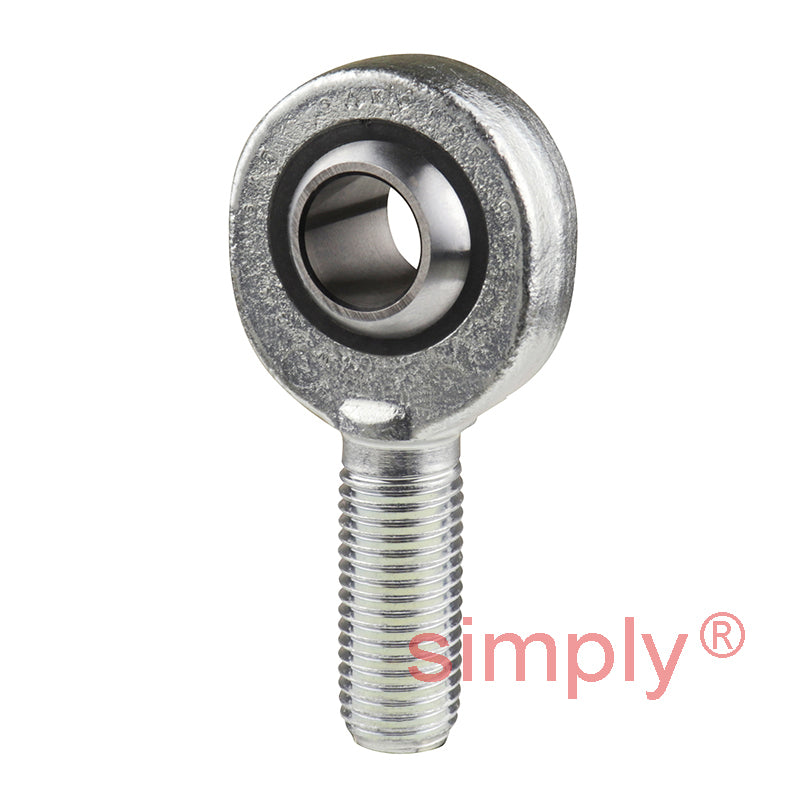

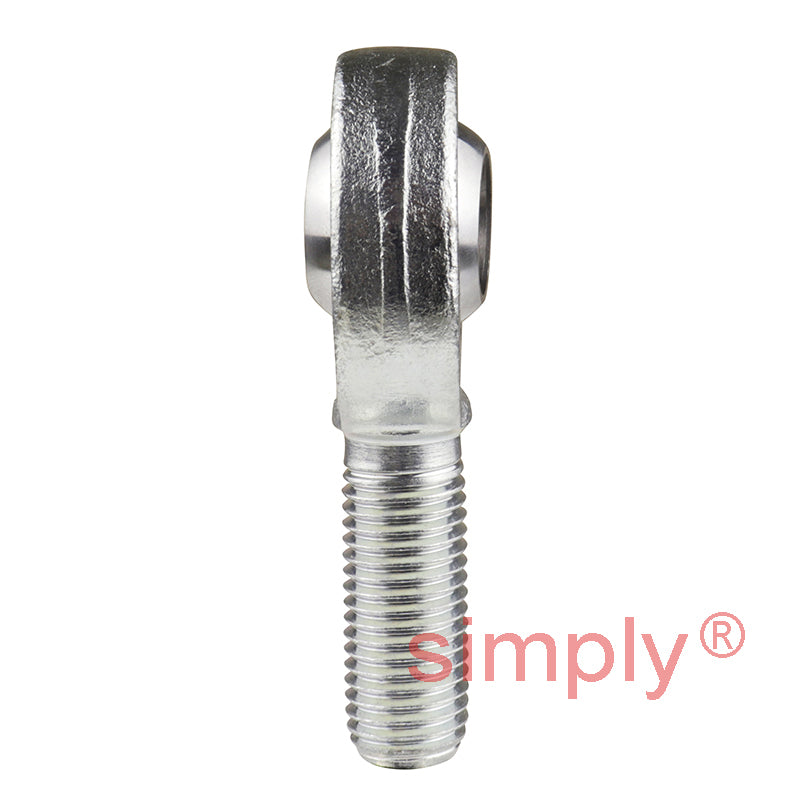

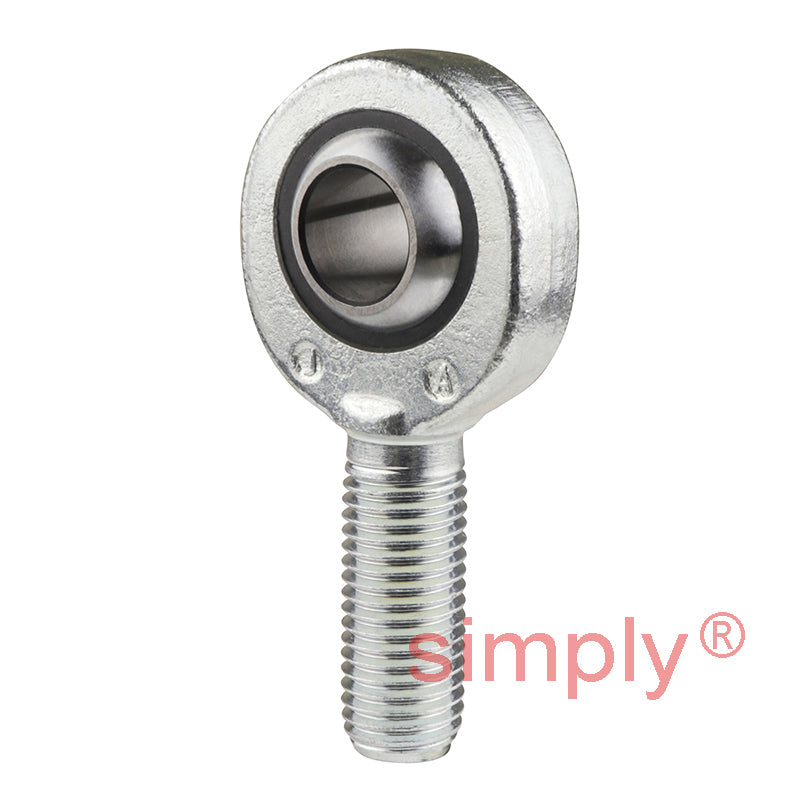

SKF SAKB18F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M18x1.5 Thread
SKF SAKB18F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M18x1.5 Thread
Regular price
€131,95
ex VAT
Regular price
Sale price
€131,95
ex VAT
Equivalent to: MS-M18
In stock
Price Break
10+
€100,46
19+
€94,82
29+
€93,69
39+
€92,56
49+
€91,43
74+
€90,30
99+
€84,66
199+
€83,53
249+
€82,40
499+
€81,27
999+
€79,02
Description
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Equivalent: MS-M18
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M18x1.5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 18mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 18mm |
|---|---|
| d2 max | 47mm |
| G | M18x1.5 |
| B | 23mm |
| C1 max | 16.5mm |
| h | 72mm |
| a | 15deg |
| Dynamic load C | 26 kN |
| Static load Co | 41.5 kN |
| Weight | 0.26 kg |
| dk | 31.7mm |
| l1 min | 41mm |
| l2 max | 97mm |
| r1 min | 0.3mm |
