SKU: SALKB14F-SKF

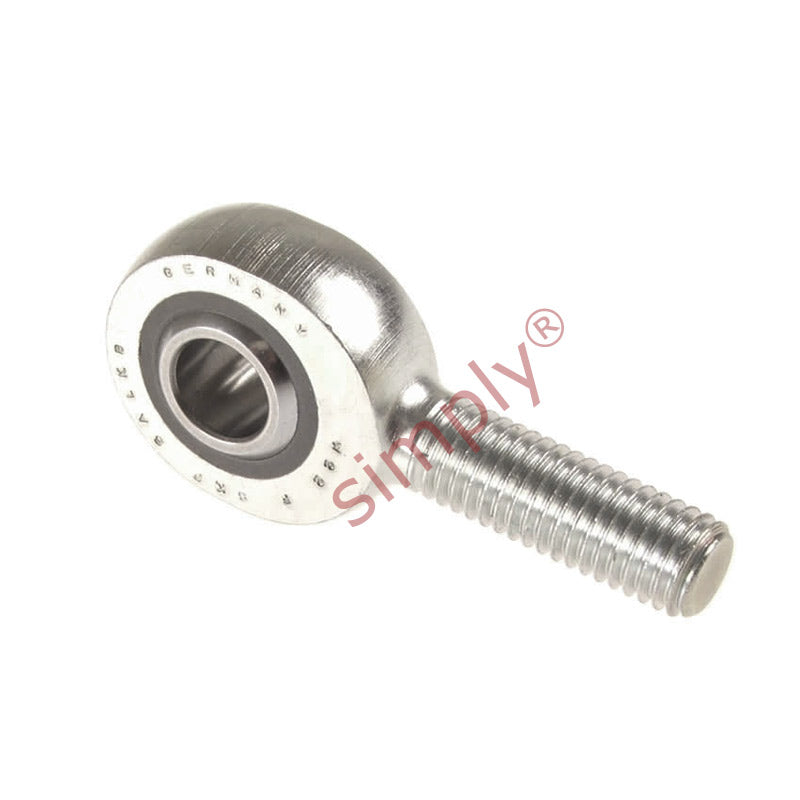

SKF SALKB14F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M14 Thread
SKF SALKB14F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M14 Thread
Regular price
€93,95
ex VAT
Regular price
Sale price
€93,95
ex VAT
Equivalent to: MSL-M14
In stock
Price Break
10+
€70,98
19+
€66,99
29+
€66,20
39+
€65,40
49+
€64,60
74+
€63,80
99+
€59,82
199+
€59,02
249+
€58,22
499+
€57,42
999+
€55,83
Description
Description
|
SKF Left Hand Thread Male Rod End: Maintenance-free rod ends with male, thread with sliding contact surface combination steel/PTFE composite. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE composite |
Equivalent: MSL-M14
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M14
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 14mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 14mm |
|---|---|
| d2 max | 37mm |
| G | M14 |
| B | 19mm |
| C1 max | 13.5mm |
| h | 60mm |
| a | 16deg |
| Dynamic load C | 17 kN |
| Static load Co | 25.5 kN |
| Weight | 0.13 kg |
| dk | 25.4mm |
| l1 min | 36mm |
| l2 max | 80mm |
| r1 min | 0.3mm |
