SKU: SB.210

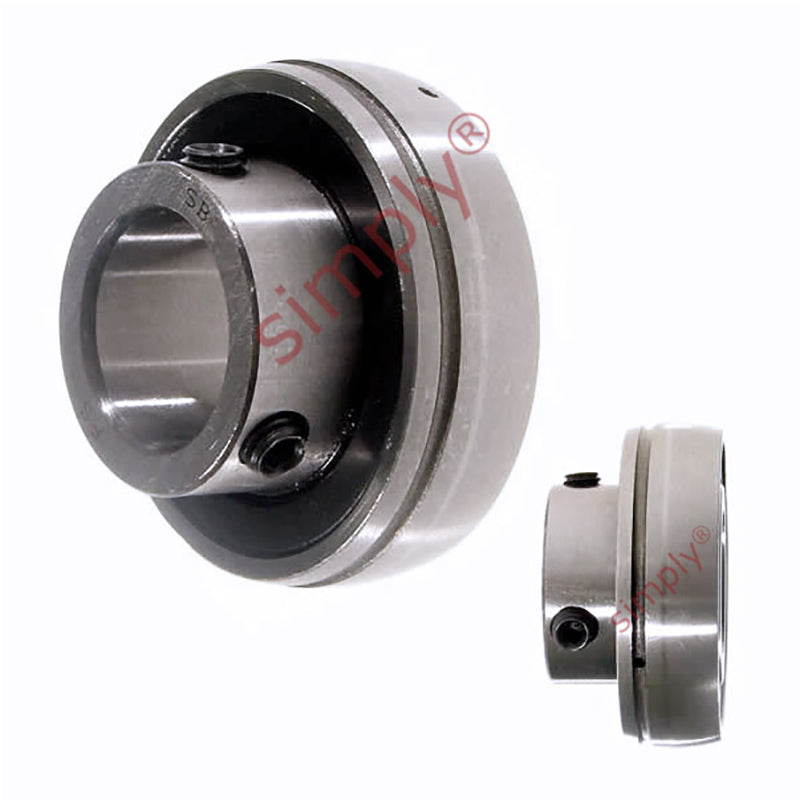

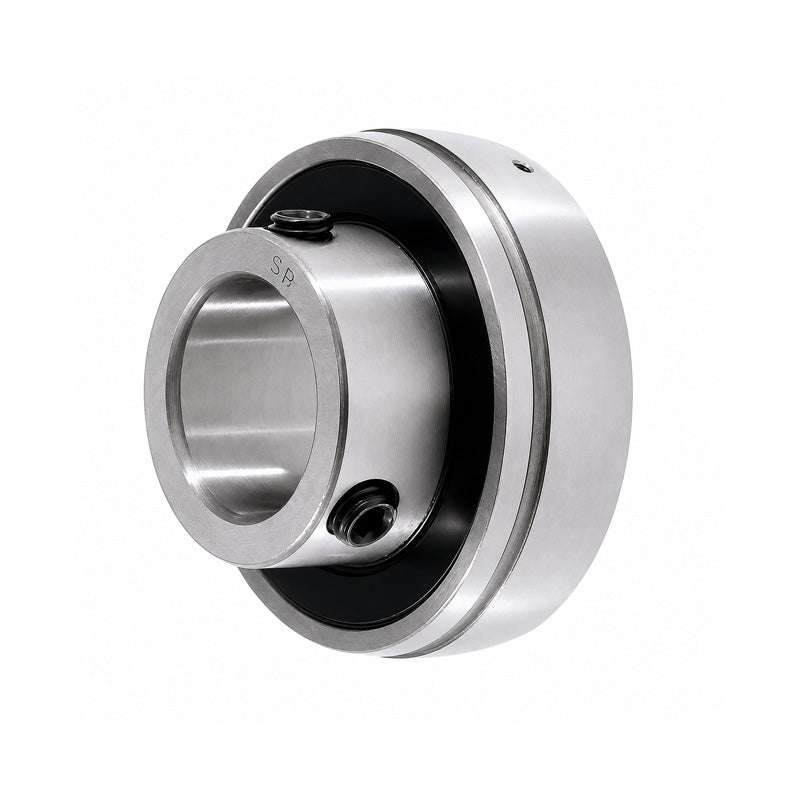

SB210 Metric Bearing Insert with 50mm Bore 90mm Outside Dia
SB210 Metric Bearing Insert with 50mm Bore 90mm Outside Dia
Regular price
€10,63
ex VAT
Regular price
Sale price
€10,63
ex VAT
In stock
Price Break
10+
€9,46
19+
€8,93
29+
€8,82
39+
€8,72
49+
€8,61
74+
€8,50
99+
€7,97
199+
€7,87
249+
€7,76
499+
€7,65
999+
€7,44
Couldn't load pickup availability
Share this product
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Style:
- SB
- Type:
- Spherical Outer
Technical
Technical
| d | 50mm |
|---|---|
| Be | 20mm |
| D | 90mm |
| Bi | 41.6mm |
| n | 10mm |
| m | 31.6mm |
| G | 9.2mm |
| h | 6.5mm |
| Grub screw | M8X1.0 |
| Weight | 0.83 kg |
| Dynamic load | 3580 kgf |
| Static load | 2300 kgf |
| Rec max speed | 3400 rpm |
