SKU: SBFD206

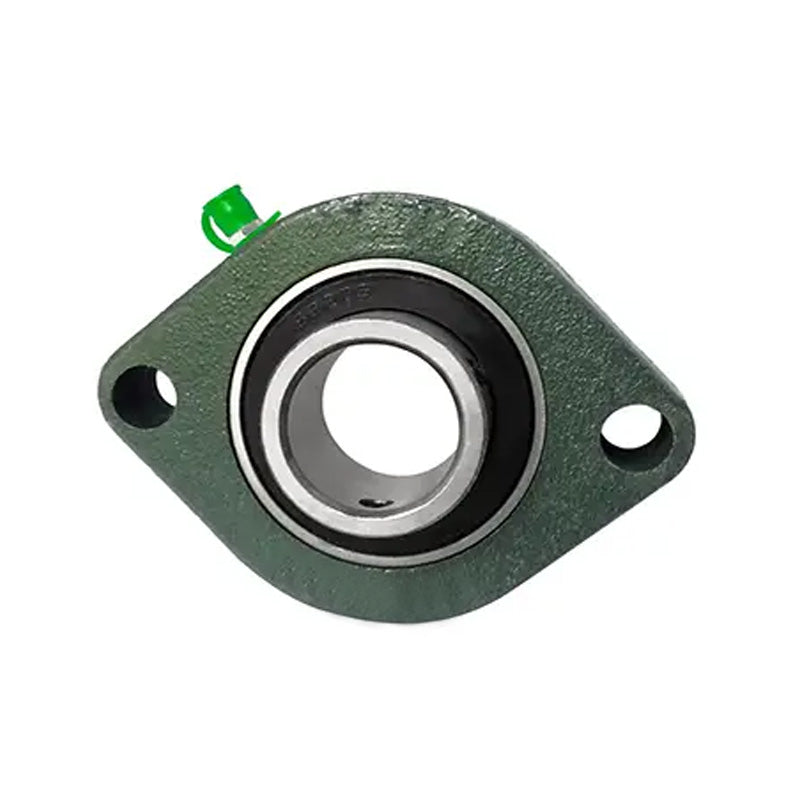

SBFD206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore
SBFD206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore
Regular price
€18,60
ex VAT
Regular price
Sale price
€18,60
ex VAT
In stock
Price Break
10+
€16,55
19+
€15,62
29+
€15,44
39+
€15,25
49+
€15,07
74+
€14,88
99+
€13,95
199+
€13,76
249+
€13,58
499+
€13,39
999+
€13,02
Couldn't load pickup availability
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- SBFD
- Bolt Hole Centres:
- 90mm
Technical
Technical
| d | 30mm |
|---|---|
| a | 113mm |
| e | 90mm |
| b | 84mm |
| i | 12mm |
| s | 12mm |
| l | 21mm |
| z | 34mm |
| B1 | 30mm |
| n | 8mm |
| Bolt size | M10 |
| Bearing no | SB206 |
| Housing no | FD206 |
| Weight | 0.8 kg |
