SKU: SBFW202-10

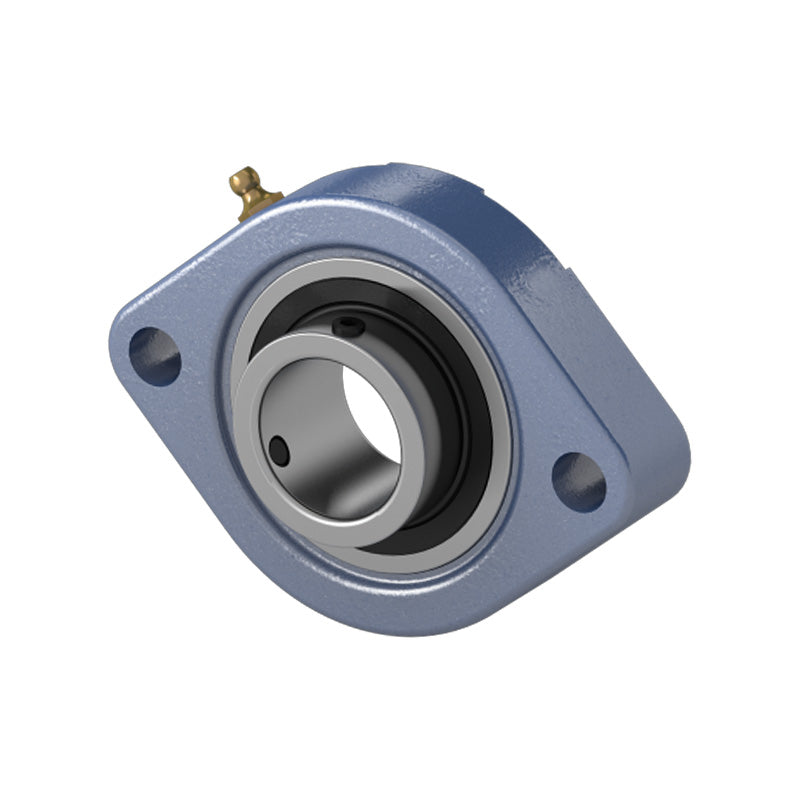

SBFW202-10 Imperial Two Bolt Cast Iron Oval Housing with 5/8 inch Bore
SBFW202-10 Imperial Two Bolt Cast Iron Oval Housing with 5/8 inch Bore
Regular price
€13,95
ex VAT
Regular price
Sale price
€13,95
ex VAT
In stock
Price Break
3+
€10,47
4+
€9,88
9+
€9,77
19+
€9,65
49+
€9,53
99+
€9,41
499+
€8,82
999+
€8,71
1999+
€8,59
2999+
€8,47
4999+
€8,24
Description
Description
|
SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations. Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Style:
- SBFW
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| d | 5/8 inch |
|---|---|
| a | 81mm |
| e | 63.5mm |
| b | 58.7mm |
| i | 8.5mm |
| s | 7mm |
| l | 15mm |
| Bolt | M6 |
| z | 24.5mm |
| B | 22mm |
| n | 6mm |
| Weight | 0.3 kg |
| Dynamic load | 760 kgf |
| Static load | 450 kgf |
